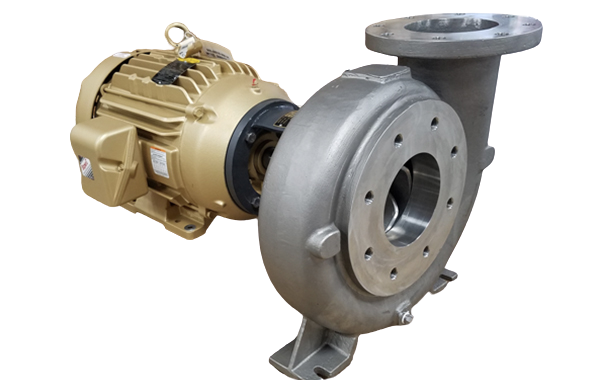

Z SERIES PUMP
All K, Z, R Series pumps feature a heavy-wall construction with tight manufacturing tolerances, a high-efficiency design with fully-shrouded, dynamically balanced impeller, and close-coupled on JM, 56J, or IEC frame motors. The standard seal is a Type 21 single mechanical with ceramic seat, carbon rotating element, Buna elastomers, and 304SS metal contruction. Other seal options are available upon request. These pumps can be ABS (American Bureau of Shipping) type approval. These pumps have capacities from 5-3000 gpm (1-680 m3/h). A bearing frame mounting is available.
These heavy duty, high efficiency Z Series pumps with 150# ANSI flanges are available from stock in three alloys – nickel aluminum bronze, 316 stainless steel, and duplex 2205 stainless steel. All Z Series pumps have ABS design approval.
THE Z SERIES PUMPS PROVIDE:
- High flow rates
- Versatility of Multiple Alloy Construction
- Flush and Frame Options Available
- Pressure up to 175 psi (12 bar)
- Temperatures up to 250°F, (120°C)
APPLICATIONS
- Cooling Towers.
- HVAC
- Light chemical applications.
- Car washes.
- Effluent wastewater, brackish water.
Avalialbe Models | |||||||
|---|---|---|---|---|---|---|---|
Model Number | Curves | 1150 | 1450 | 1750 | 2900 | 3500 | Data Sheet |
| ZC2 1-1/2 x 1-1/4 Bronze | Curves | – | – | 1750 | 2900 | 3500 | Data Sheet |
| ZC2 1-1/2 x 1-1/4 Stainless Steel | Curves | – | – | 1750 | 2900 | 3500 | Data Sheet |
| ZC2/ZCH2 1-1/2 x 1-1/2 | Curves | – | – | 1750 | 2900 | 3500 | Data Sheet |
| ZC2 2 X 1-1/2 | Curves | – | – | 1750 | 2900 | 3500 | Data Sheet |
| ZC2/ZCH2 2 X 2 | Curves | – | – | 1750 | 2900 | 3500 | Data Sheet |
| ZC2 2 1/2 X 2 | Curves | – | – | 1750 | 2900 | 3500 | Data Sheet |
| ZC2/ZCH2 3 X 2 | Curves | – | – | 1750 | 2900 | 3500 | Data Sheet |
| ZC2/ZCH2 3 X 2-1/2 | Curves | – | – | 1750 | 2900 | 3500 | Data Sheet |
| ZC2/ZCH2 4 X 3 | Curves | – | – | 1750 | 2900 | 3500 | Data Sheet |
| ZC2/ZCH2 4 X 3C | Curves | – | – | 1750 | 2900 | 3500 | Data Sheet |
| ZC2/ZCH2 4 X 3L | Curves | 1150 | 1450 | 1750 | – | – | Data Sheet |
| ZC2/ZCH2 5 X 4 | Curves | 1150 | 1450 | 1750 | – | – | Data Sheet |
| ZC2/ZCH2 5 X 4P | Curves | – | – | 1750 | 2900 | 3500 | Data Sheet |
| ZCH2 6 X 6 | Curves | 1150 | 1450 | 1750 | – | – | Data Sheet |
| ZCH2 8 X 6 | Curves | 1150 | 1450 | 1750 | – | – | Data Sheet |
| ZCH2 8 X 6 M | Curves | – | 1450 | 1750 | – | – | Data Sheet |
