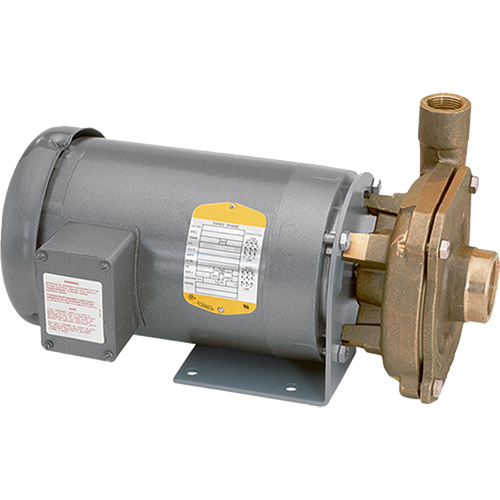

K SERIES PUMPS
All K, Z, R Series pumps feature a heavy-wall construction with tight manufacturing tolerances, a high-efficiency design with fully-shrouded, dynamically balanced impeller, and close-coupled on JM, 56J, or IEC frame motors. The standard seal is a Type 21 single mechanical with ceramic seat, carbon rotating element, Buna elastomers, and 304SS metal contruction. Other seal options are available upon request. These pumps can be ABS (American Bureau of Shipping) type approval. These pumps have capacities from 5-3000 gpm (1-680 m3/h). A bearing frame mounting is available.
Smaller K Series pumps have NPT threaded connections and are close-coupled to 56J frame motors. K Series pumps are available in nickel aluminum bronze and 316 stainless steel. All K Series pumps have ABS design approval.
THE K SERIES PUMPS PROVIDE:
- Pressure up to 150 psi, 10 bar
- Temperatures up to 225°F, 105°C
- Multiple sealing options
- Enclosed impellers
- Close-coupled to NEMA motor
APPLICATIONS
- Cooling Towers.
- HVAC
- Light chemical applications.
- Car washes.
- Effluent wastewater, brackish water.
Avalialbe Models | |||||
|---|---|---|---|---|---|
Model Number | Curves | 1750 | 2900 | 3500 | Data Sheet |
| C2 1 x 3/4 BRONZE | Curves | 1750 | 2900 | 3500 | Data Sheet |
| KC2 1 x 3/4 STAINLESS STEEL | Curves | 1750 | 2900 | 3500 | Data Sheet |
| KC2 1-1/4 X 1 | Curves | 1750 | 2900 | 3500 | Data Sheet |
| KC2 1-1/2 x 1 | Curves | 1750 | 2900 | 3500 | Data Sheet |
| KC2 1-1/2 x 1-1/4 BRONZE | Curves | 1750 | 2900 | 3500 | Data Sheet |
| KC2 1-1/2 x 1-1/4 STAINLESS STEEL | Curves | 1750 | 2900 | 3500 | Data Sheet |
| KC2 2 X 1-1/2 | Curves | 1750 | 2900 | 3500 | Data Sheet |
| KC2 2-1/2 X 2 | Curves | 1750 | 2900 | 3500 | Data Sheet |
| KP2 1 x 3/4 BRONZE | Curves | 1750 | 2900 | 3500 | Data Sheet |
| KP2 1 x 3/4 STAINLESS STEEL | Curves | 1750 | 2900 | 3500 | Data Sheet |
| KP2 1-1/4 X 1 | Curves | 1750 | 2900 | 3500 | Data Sheet |
| KP2 1-1/2 x 1 | Curves | 1750 | 2900 | 3500 | Data Sheet |
