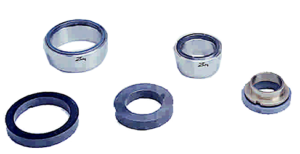

WAUKESHA® U-1 & U-2, 200 SERIES PUMP OEM SEALS

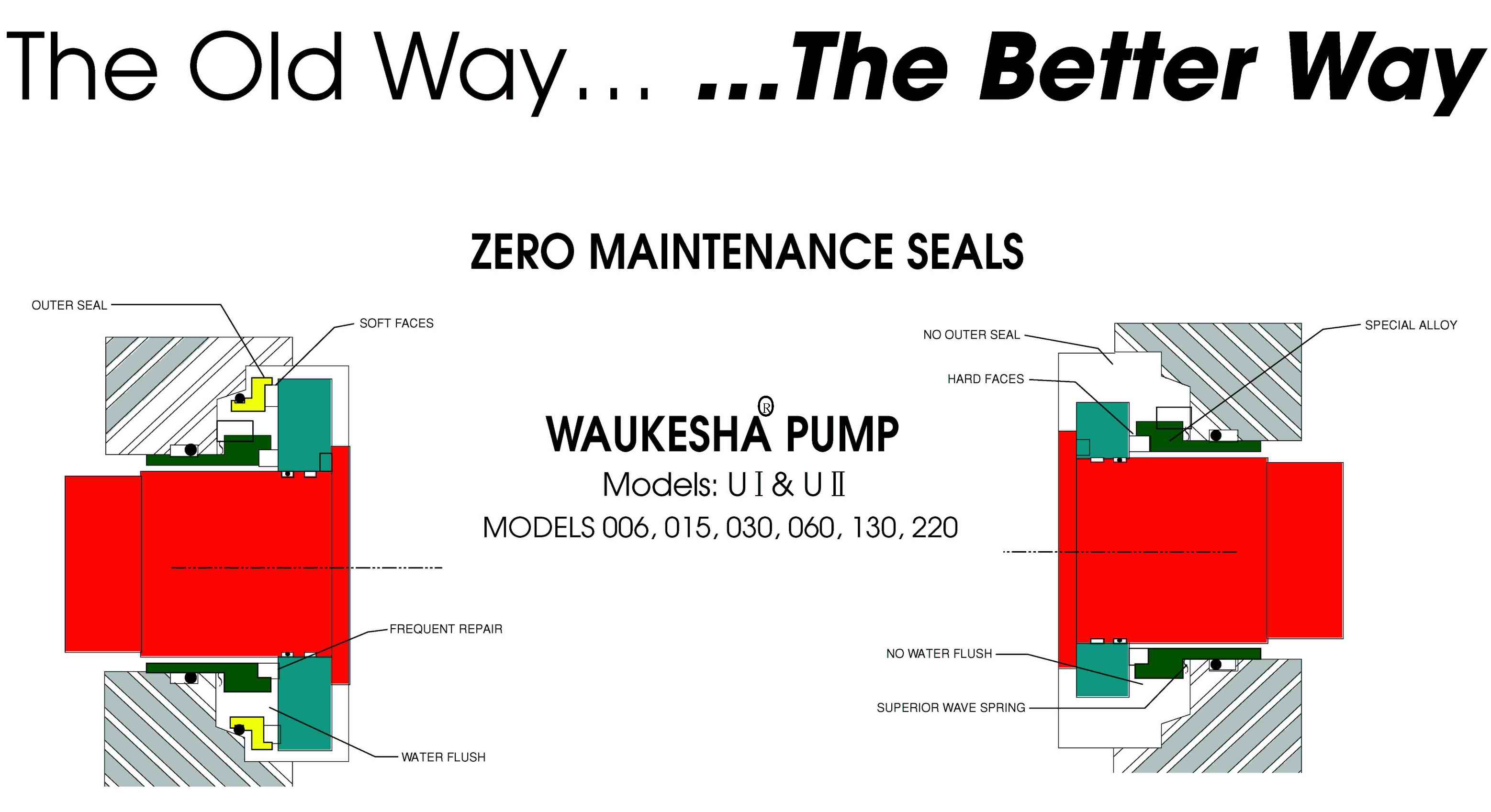

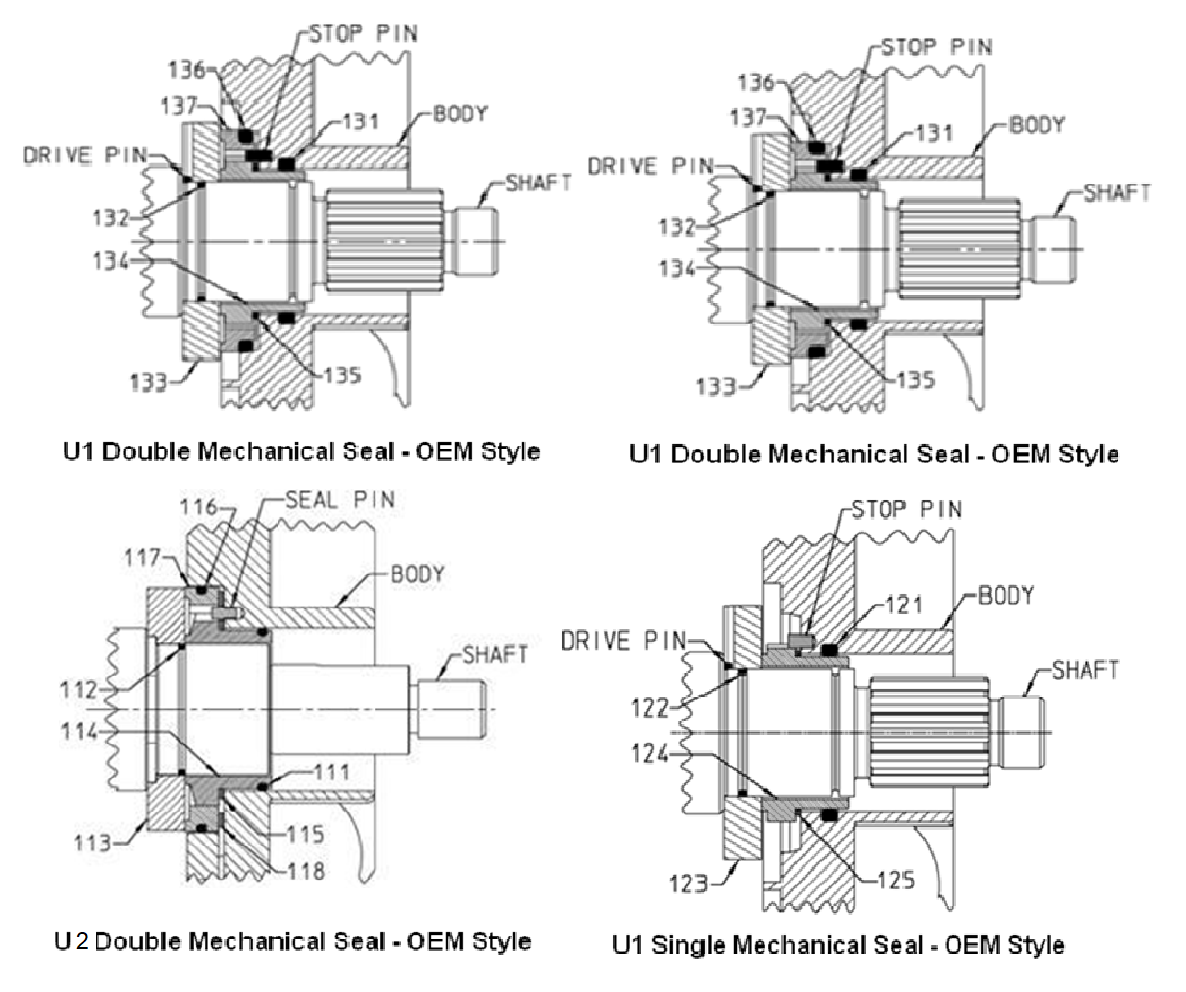

WAUKESHA® OEM SEAL/SLEEVE DIAGRAM
We sell O.E.M. replicated seals for the Waukesha® Universal 1, Universal 2, and the 200 Series pumps. Our inventory includes Single Seals, Double Seals, Sleeves, Wave Springs, and O-rings in a range of materials. We stock Universal 1 & 2 PD pump models from the 006 to the 523.
Seals for the 200 series centrifugal pumps (i.e. – model 2045 thru 2105) are stocked for immediate delivery.
All seal components are available as individual parts or as O.E.M. style kits.
Use tabs below to select seal parts needed, or

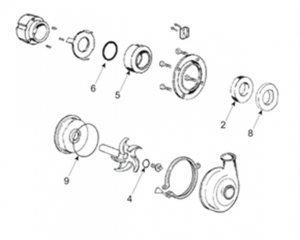

click here to look at a complete seal parts breakdown.
- U1 006-018 Seal Parts
- U1 030-040 Seal Parts
- U1 060-134 Seal Parts
- U1 220-224 Seal Parts
- U1 320-324 Seal Parts
- U2 006-018 Seal Parts
- U2 030-034 Seal Parts
- U2 045-134 Seal Parts
- U2 180-224 Seal Parts
- U2 210-324 Seal Parts
- 200 Series Models 2045-2105Seal Parts
| SEAL LIST – Waukesha® U1 006, 015, 018, 024 PD Pump | |||
|---|---|---|---|
| Description | Material | Ref. Part No. | ZMT Part No. |
| Sleeve | SS | 015-098-000 | W006-11-1000 |
| Sleeve | Zirconia | 015-098-004 | W006-11-7000 |
| Sleeve | CrO2 Coated | 015-098-002 | W006-11-6000 |
| 006 – 024 Inner Seal | CBN | 015-306-007 | W006-00-0500 |
| 006 – 024 Inner Seal | Cer | 015-306-002 | W006-00-0700 |
| 006 – 024 Inner Seal | SiC | 015-306-009 | W006-00-0200 |
| 006 – 024 Seal Seat | Cer | 015-014-002 | W006-00-7000 |
| 006 – 024 Seal Seat | SiC | 015-014-009 | W006-00-2000 |
| 006 – 024 Outer Seal | CBN | 015-206-007 | W006-00-0005 |
| Body Oring | Buna | AD0079000 | WAD0079000 |
| Body Oring | EPDM | AD0079002 | WAD0079002 |
| Body Oring | Viton® | AD0079V00 | WAD0079V00 |
| Body Oring | Silicone | AD0079SC0 | WAD0079SC0 |
| Shaft O-Ring | Buna | N70022 | WN70022 |
| Shaft O-Ring | EPDM | E70022 | WE70022 |
| Shaft O-Ring | Viton® | V70022 | WV70022 |
| Shaft O-Ring | Silicone | S75022 | WS75022 |
| Outer Seal O-Ring | Buna | N50228 | WN50228 |
| Wave Spring | SS | 015-304-000 | W015-304-000 |
| 006 – 024 Single Sleeve, Seal & O-Ring Kit | SS/Buna | 105247 | W006KT-11-1000B |
| 006 – 024 Single Sleeve, Seal & O-Ring Kit | SS/EPDM | — | W006KT-11-1000E |
| 006 – 024 Single Sleeve, Seal & O-Ring Kit | SS/Viton® | 105251 | W006KT-11-1000V |
| 006 – 024 Double Sleeve, Seal & O-Ring Kit | SS/Buna | 105249 | W006KT-11-1010B |
| 006 – 024 Double Sleeve, Seal & O-Ring Kit | SS/EPDM | — | W006KT-11-1010E |
| 006 – 024 Double Sleeve, Seal & O-Ring Kit | SS/Viton® | 105253 | W006KT-11-1010V |
| 006 – 024 Single Mechanical, Seal & O-Ring Kit | CBN/Cer/Buna | 105295 | W006KT-00-7500B |
| 006 – 024 Single Mechanical, Seal & O-Ring Kit | CBN/Cer/EPDM | — | W006KT-00-7500E |
| 006 – 024 Single Mechanical, Seal & O-Ring Kit | CBN/Cer/Viton® | 105296 | W006KT-00-7500V |
| 006 – 024 Single Mechanical, Seal & O-Ring Kit | CBN/SiC/Buna | 105297 | W006KT-00-2500B |
| 006 – 024 Single Mechanical, Seal & O-Ring Kit | CBN/SiC/EPDM | — | W006KT-00-2500E |
| 006 – 024 Single Mechanical, Seal & O-Ring Kit | CBN/SiC/Viton® | 105298 | W006KT-00-2500V |
| 006 – 024 Single Mechanical, Seal & O-Ring Kit | SiC/SiC/Buna | — | W006KT-00-2200B |
| 006 – 024 Single Mechanical, Seal & O-Ring Kit | SiC/SiC/EPDM | — | W006KT-00-2200E |
| 006 – 024 Single Mechanical, Seal & O-Ring Kit | SiC/SiC/Viton® | — | W006KT-00-2200V |
| 006 – 024 Double Mechanical, Seal & O-Ring Kit | CBN/Cer/CBN/Cer/Buna | 105299 | W006KT-00-7575B |
| 006 – 024 Double Mechanical, Seal & O-Ring Kit | CBN/Cer/CBN/Cer/EPDM | — | W006KT-00-7575E |
| 006 – 024 Double Mechanical, Seal & O-Ring Kit | CBN/Cer/CBN/Cer/Viton® | 105300 | W006KT-00-7575V |
| 006 – 024 Double Mechanical, Seal & O-Ring Kit | SiC/SiC/CBN/SiC/Buna | 105301 | W006KT-00-2225B |
| 006 – 024 Double Mechanical, Seal & O-Ring Kit | SiC/SiC/CBN/SiC/EPDM | — | W006KT-00-2225E |
| 006 – 024 Double Mechanical, Seal & O-Ring Kit | SiC/SiC/CBN/SiC/Viton® | 105302 | W006KT-00-2225V |
| SEAL LIST – Waukesha® U1 030, 034, 040 PD Pump | |||
|---|---|---|---|
| Description | Material | Ref. Part No. | ZMT Part No. |
| 030 – 034 – 040 Sleeve | SS | 030-098-000 | W030-11-1000 |
| 030 – 03 – 0404 Sleeve | Zirconia | 030-098-004 | W030-11-7000 |
| 030 – 034 – 040 Sleeve | CrO2 Coated | 030-098-002 | W030-11-6000 |
| 030 – 034 – 040 Inner Seal | CBN | 030-306-007 | W030-00-0500 |
| 030 – 034 – 040 Inner Seal | Cer | 030-306-002 | W030-00-0700 |
| 030 – 034 – 040 Inner Seal | SiC | 030-306-009 | W030-00-0200 |
| 030 – 034 – 040 Seal Seat | Cer | 030-014-002 | W030-00-7000 |
| 030 – 034 – 040 Seal Seat | SiC | 030-014-009 | W030-00-2000 |
| 030 – 034 – 040 Outer Seal | CBN | 030-206-007 | W030-00-0005 |
| Body Oring | Buna | N70327 | WN70327 |
| Body Oring | EPDM | E70327 | WE70327 |
| Body Oring | Viton® | V70327 | WV70327 |
| Body Oring | Silicone | S75327 | WS75327 |
| Shaft O-Ring | Buna | N70028 | WN70028 |
| Shaft O-Ring | EPDM | E70028 | WE70028 |
| Shaft O-Ring | Viton® | V70028 | WV70028 |
| Shaft O-Ring | Silicone | S75028 | WS75028 |
| Outer Seal O-Ring | Buna | N50335 | WN50335 |
| Wave Spring | SS | 030-304-000 | W030-304-000 |
| 030 – 034 – 040 Single Sleeve, Seal & O-Ring Kit | SS/Buna | 105259 | W030KT-11-1000B |
| 030 – 034 – 040 Single Sleeve, Seal & O-Ring Kit | SS/EPDM | — | W030KT-11-1000E |
| 030 – 034 – 040 Single Sleeve, Seal & O-Ring Kit | SS/Viton® | 105263 | W030KT-11-1000V |
| 030 – 034 – 040 Double Sleeve, Seal & O-Ring Kit | SS/Buna | 105261 | W030KT-11-1010B |
| 030 – 034 – 040 Double Sleeve, Seal & O-Ring Kit | SS/EPDM | — | W030KT-11-1010E |
| 030 – 034 – 040 Double Sleeve, Seal & O-Ring Kit | SS/Viton® | 105265 | W030KT-11-1010V |
| 030 – 034 – 040 Single Mechanical, Seal & O-Ring Kit | CBN/Cer/Buna | 105305 | W030KT-00-7500B |
| 030 – 034 – 040 Single Mechanical, Seal & O-Ring Kit | CBN/Cer/EPDM | — | W030KT-00-7500E |
| 030 – 034 – 040 Single Mechanical, Seal & O-Ring Kit | CBN/Cer/Viton® | 105306 | W030KT-00-7500V |
| 030 – 034 – 040 Single Mechanical, Seal & O-Ring Kit | CBN/SiC/Buna | 105307 | W030KT-00-2500B |
| 030 – 034 – 040Single Mechanical, Seal & O-Ring Kit | CBN/SiC/EPDM | — | W030KT-00-2500E |
| 030 – 034 – 040 Single Mechanical, Seal & O-Ring Kit | CBN/SiC/Viton® | 105308 | W030KT-00-2500V |
| 030 – 034 – 040 Single Mechanical, Seal & O-Ring Kit | SiC/SiC/Buna | — | W030KT-00-2200B |
| 030 – 034 – 040 Single Mechanical, Seal & O-Ring Kit | SiC/SiC/EPDM | — | W030KT-00-2200E |
| 030 – 034 – 040 Single Mechanical, Seal & O-Ring Kit | SiC/SiC/Viton® | — | W030KT-00-2200V |
| 030 – 034 – 040 Double Mechanical, Seal & O-Ring Kit | CBN/Cer/CBN/Cer/Buna | 105309 | W030KT-00-7575B |
| 030 – 034 – 040 Double Mechanical, Seal & O-Ring Kit | CBN/Cer/CBN/Cer/EPDM | — | W030KT-00-7575E |
| 030 – 034 – 040 Double Mechanical, Seal & O-Ring Kit | CBN/Cer/CBN/Cer/Viton® | 105310 | W030KT-00-7575V |
| 030 – 034 – 040 Double Mechanical, Seal & O-Ring Kit | SiC/SiC/CBN/SiC/Buna | 105311 | W030KT-00-2225B |
| 030 – 034 – 040 Double Mechanical, Seal & O-Ring Kit | SiC/SiC/CBN/SiC/EPDM | — | W030KT-00-2225E |
| 030 – 034 – 040 Double Mechanical, Seal & O-Ring Kit | SiC/SiC/CBN/SiC/Viton® | 105312 | W030KT-00-2225V |
| SEAL LIST – Waukesha® U1 060, 064, 130, 134 PD Pump | |||
|---|---|---|---|
| Description | Material | Ref. Part No. | ZMT Part No. |
| 060 – 134 Sleeve | SS | 060-098-000 | W130-11-1000 |
| 060 – 134 Sleeve | Zirconia | 060-098-004 | W130-11-7000 |
| 060 – 134 Sleeve | CrO2 Coated | 060-098-002 | W130-11-6000 |
| 060 – 134 Inner Seal – 2 Piece | CBN | 060-306-007 | W130Z-00-0500 |
| 060 – 134 Inner Seal – 2 Piece | Cer | 060-306-002 | W130Z-00-0700 |
| 060 – 134 Inner Seal – 2 Piece | SiC | 060-306-009 | W130-00-0200 |
| 040 – 134 Seal Seat | Cer | 060-014-002 | W130-00-7000 |
| 060 – 134 Seal Seat | SiC | 060-014-009 | W130-00-2000 |
| 060 – 134 Outer Seal | CBN | 060-206-007 | W130-00-0005 |
| Body Oring | Buna | N70331 | WN70331 |
| Body Oring | EPDM | E70331 | WE70331 |
| Body Oring | Viton® | V70331 | WV70331 |
| Body Oring | Silicone | S75331 | WS75331 |
| Shaft O-Ring | Buna | N70131 | WN70131 |
| Shaft O-Ring | EPDM | E70131 | WE70131 |
| Shaft O-Ring | Viton® | V70131 | WV70131 |
| Shaft O-Ring | Silicone | S75131 | WS75131 |
| Outer Seal O-Ring | Buna | N50338 | WN50338 |
| Wave Spring | SS | 060-304-000 | W060-304-000 |
| 060 – 134 Single Sleeve, Seal & O-Ring Kit | SS/Buna | 105271 | W130KT-11-1000B |
| 060 – 134 Single Sleeve, Seal & O-Ring Kit | SS/EPDM | — | W130KT-11-1000E |
| 060 – 134 Single Sleeve, Seal & O-Ring Kit | SS/Viton® | 105275 | W130KT-11-1000V |
| 060 – 134 Double Sleeve, Seal & O-Ring Kit | SS/Buna | 105273 | W130KT-11-1010B |
| 060 – 134 Double Sleeve, Seal & O-Ring Kit | SS/EPDM | — | W130KT-11-1010E |
| 060 – 134 Double Sleeve, Seal & O-Ring Kit | SS/Viton® | 105277 | W130KT-11-1010V |
| 060 – 134 Single Mechanical, Seal & O-Ring Kit | CBN/Cer/Buna | 105315 | W130KT-00-7500B |
| 060 – 134 Single Mechanical, Seal & O-Ring Kit | CBN/Cer/EPDM | — | W130KT-00-7500E |
| 060 – 134 Single Mechanical, Seal & O-Ring Kit | CBN/Cer/Viton® | 105316 | W130KT-00-7500V |
| 060 – 134 Single Mechanical, Seal & O-Ring Kit | CBN/SiC/Buna | 105317 | W130KT-00-2500B |
| 060 – 134 Single Mechanical, Seal & O-Ring Kit | CBN/SiC/EPDM | — | W130KT-00-2500E |
| 060 – 134 Single Mechanical, Seal & O-Ring Kit | CBN/SiC/Viton® | 105318 | W130KT-00-2500V |
| 060 – 134 Single Mechanical, Seal & O-Ring Kit | SiC/SiC/Buna | — | W130KT-00-2200B |
| 060 – 134 Single Mechanical, Seal & O-Ring Kit | SiC/SiC/EPDM | — | W130KT-00-2200E |
| 060 – 134 Single Mechanical, Seal & O-Ring Kit | SiC/SiC/Viton® | — | W130KT-00-2200V |
| 060 – 134 Double Mechanical, Seal & O-Ring Kit | CBN/Cer/CBN/Cer/Buna | 105319 | W130KT-00-7575B |
| 060 – 134 Double Mechanical, Seal & O-Ring Kit | CBN/Cer/CBN/Cer/EPDM | — | W130KT-00-7575E |
| 060 – 134 Double Mechanical, Seal & O-Ring Kit | CBN/Cer/CBN/Cer/Viton® | 105320 | W130KT-00-7575V |
| 060 – 134 Double Mechanical, Seal & O-Ring Kit | SiC/SiC/CBN/SiC/Buna | 105321 | W130KT-00-2225B |
| 060 – 134 Double Mechanical, Seal & O-Ring Kit | SiC/SiC/CBN/SiC/EPDM | — | W130KT-00-2225E |
| 060 – 134 Double Mechanical, Seal & O-Ring Kit | SiC/SiC/CBN/SiC/Viton® | 105322 | W130KT-00-2225V |
| SEAL LIST – Waukesha® U1 220, 224 PD Pump | |||
|---|---|---|---|
| Description | Material | Ref. Part No. | ZMT Part No. |
| 220 – 224 Sleeve | SS | 220-098-000 | W220-11-1000 |
| 220 – 224 Sleeve | Zirconia | 220-098-004 | W220-11-7000 |
| 220 – 224 Sleeve | CrO2 Coated | 220-098-002 | W220-11-6000 |
| 220 – 224 Inner Seal | CBN | 220-306-007 | W220Z-00-0500 |
| 220 – 224 Inner Seal | Cer | 220-306-002 | W220Z-00-0700 |
| 220 – 224 Inner Seal | SiC | 220-306-009 | W220-00-0200 |
| 220 – 224 Seal Seat | Cer | 220-014-002 | W220-00-7000 |
| 220 – 224 Seal Seat | SiC | 220-014-009 | W220-00-2000 |
| 220 – 224 Outer Seal | CBN | 220-206-007 | W220-00-0005 |
| Body Oring | Buna | N70338 | WN70338 |
| Body Oring | EPDM | E70338 | WE70338 |
| Body Oring | Viton® | V70338 | WV70338 |
| Body Oring | Silicone | S75338 | WS75338 |
| Shaft O-Ring | Buna | N70144 | WN70144 |
| Shaft O-Ring | EPDM | E70144 | WE70144 |
| Shaft O-Ring | Viton® | V70144 | WV70144 |
| Shaft O-Ring | Silicone | S75144 | WS75144 |
| Outer Seal O-Ring | Buna | N50344 | WN50344 |
| Wave Spring | SS | 220-304-000 | W220-304-000 |
| 220 – 224 Single Sleeve, Seal & O-Ring Kit | SS/Buna | 105283 | W220KT-11-1000B |
| 220 – 224 Single Sleeve, Seal & O-Ring Kit | SS/EPDM | — | W220KT-11-1000E |
| 220 – 224 Single Sleeve, Seal & O-Ring Kit | SS/Viton® | 105287 | W220KT-11-1000V |
| 220 – 224 Double Sleeve, Seal & O-Ring Kit | SS/Buna | 105285 | W220KT-11-1010B |
| 220 – 224 Double Sleeve, Seal & O-Ring Kit | SS/EPDM | — | W220KT-11-1010E |
| 220 – 224 Double Sleeve, Seal & O-Ring Kit | SS/Viton® | 105289 | W220KT-11-1010V |
| 220 – 224 Single Mechanical, Seal & O-Ring Kit | CBN/Cer/Buna | 105325 | W220KT-00-7500B |
| 220 – 224 Single Mechanical, Seal & O-Ring Kit | CBN/Cer/EPDM | — | W220KT-00-7500E |
| 220 – 224 Single Mechanical, Seal & O-Ring Kit | CBN/Cer/Viton® | 105326 | W220KT-00-7500V |
| 220 – 224 Single Mechanical, Seal & O-Ring Kit | CBN/SiC/Buna | 105327 | W220KT-00-2500B |
| 220 – 224 Single Mechanical, Seal & O-Ring Kit | CBN/SiC/EPDM | — | W220KT-00-2500E |
| 220 – 224 Single Mechanical, Seal & O-Ring Kit | CBN/SiC/Viton® | 105328 | W220KT-00-2500V |
| 220 – 224 Single Mechanical, Seal & O-Ring Kit | SiC/SiC/Buna | — | W220KT-00-2200B |
| 220 – 224 Single Mechanical, Seal & O-Ring Kit | SiC/SiC/EPDM | — | W220KT-00-2200E |
| 220 – 224 Single Mechanical, Seal & O-Ring Kit | SiC/SiC/Viton® | — | W220KT-00-2200V |
| 220 – 224 Double Mechanical, Seal & O-Ring Kit | CBN/Cer/CBN/Cer/Buna | 105329 | W220KT-00-7575B |
| 220 – 224 Double Mechanical, Seal & O-Ring Kit | CBN/Cer/CBN/Cer/EPDM | 0 | W220KT-00-7575E |
| 220 – 224 Double Mechanical, Seal & O-Ring Kit | CBN/Cer/CBN/Cer/Viton® | 105330 | W220KT-00-7575V |
| 220 – 224 Double Mechanical, Seal & O-Ring Kit | SiC/SiC/CBN/SiC/Buna | 105331 | W220KT-00-2225B |
| 220 – 224 Double Mechanical, Seal & O-Ring Kit | SiC/SiC/CBN/SiC/EPDM | — | W220KT-00-2225E |
| 220 – 224 Double Mechanical, Seal & O-Ring Kit | SiC/SiC/CBN/SiC/Viton® | 105332 | W220KT-00-2225V |
| SEAL LIST – Waukesha® U1 320, 323, 324 PD Pump | |||
|---|---|---|---|
| Description | Material | Ref. Part No. | ZMT Part No. |
| 320 – 324 Inner Seal Face (Nose) | SiC | 40754 | W323-09-2000 |
| 320 – 324 Inner Seal Face (Nose) | Ceramic | 40755 | W323-09-7000 |
| 320 – 324 Inner Seal Face (Nose) | CBN | 36027 | W323-09-5000 |
| 320 – 324 Stationary Seat, Flushed | Ceramic | 300014027 | W323-52-0700 |
| 320 – 324 Stationary Seat, Flushed | SiC | 300042031 | W323-52-0200 |
| 320 – 324 Stationary Seat, Plain – NonFlushed | Ceramic | 300014012 | W320-52X-0700 |
| 320 – 324 Stationary Seat, Plain – NonFlushed | SiC | 300014016 | W320-52X-0200 |
| 320 – 324 Outer Seal Face (Nose) | CBN | — | W323-09-0050 |
| 320 – 324 Outer Seal Face (Nose) | SiC | — | W323-09-0020 |
| Shaft O-Ring | EPDM | E70234 | WE70234 |
| Shaft O-Ring | Viton® | V70234 | WV70234 |
| Shaft O-Ring | Silicone | S75234 | WS75234 |
| Seal Face O-Ring (Nose to Retainer) | EPDM | E70238 | WE70238 |
| Seal Face O-Ring (Nose to Retainer) | Viton® | V70238 | WV70238 |
| Seal Face O-Ring (Nose to Retainer) | Silicone | S75238 | WS75238 |
| Inner Spring | SS | 40875 | W323-12-1000 |
| Outer Spring | SS | — | W323-12-0010 |
| Inner Set Screw | SS | 110038 | FSHSS25020-375-SS |
| Gasket, Inner Stationary Seat, Flushed | EPDM | 300042003 | W300-042-003 |
| Gasket, Outer Stationary Seat, Flushed | EPDM | 300042004 | W300-042-004 |
| Gasket, Inner Stationary Seat, Flushed | Silicone | — | W300-042-005 |
| Gasket, Outer Stationary Seat, Flushed | Silicone | — | W300-042-006 |
| 320 – 324 Complete Inner Seal | CBN/EPDM | — | W323-00-5000E |
| 320 – 324 Complete Inner Seal | CBN/Viton® | — | W323-00-5000V |
| 320 – 324 Complete Inner Seal | CBN/Silicone | — | W323-00-5000S |
| 320 – 324 Complete Inner Seal | SiC/EPDM | 40572 | W323-00-2000E |
| 320 – 324 Complete Inner Seal | SiC/Viton® | — | W323-00-2000V |
| 320 – 324 Complete Inner Seal | SiC/Silicone | — | W323-00-2000S |
| 320 – 324 Complete Outer Seal | CBN/EPDM | 323114003 | W323-00-0050E |
| 320 – 324 OEM Style Complete Double Seal – (Per Shaft) | SiC/SiC/CBN/SiC/EPDM | — | W323-52-2252E |
| 320 – 324 OEM Style Complete Double Seal – (Per Shaft) | SiC/SiC/CBN/SiC/Viton® | — | W323-52-2252V |
| 320 – 324 OEM Style Complete Double Seal – (Per Shaft) | SiC/SiC/CBN/SiC/Silicone | — | W323-52-2252S |
| 320 – 324 OEM Style Complete Double Seal – (Per Pump) | SiC/SiC/CBN/SiC/EPDM | — | W323KT-52-2252E |
| 320 – 324 OEM Style Complete Double Seal – (Per Pump) | SiC/SiC/CBN/SiC/Viton® | — | W323KT-52-2252V |
| 320 – 324 OEM Style Complete Double Seal – (Per Pump) | SiC/SiC/CBN/SiC/Silicone | — | W323KT-52-2252S |
| SEAL LIST – Waukesha® U2 006, 015, 018 PD Pump | |||
|---|---|---|---|
| Description | Material | Ref. Part No. | ZMT Part No. |
| 006 – 018 U2 Inner Seal | SiC | 101653 | W006U2-00-0200 |
| 006 – 018 U2 Inner Seal | Cer | 101652 | W006U2-00-0700 |
| 006 – 018 U2 Inner Seal | CBN | 101651 | W006U2-00-0500 |
| 006 – 018 U2 Seal Seat | SiC | 101668 | W006U2-00-2000 |
| 006 – 018 U2 Seal Seat | Cer | 101667 | W006U2-00-7000 |
| 006 – 018 U2 Outer Seal | CBN | 101679 | W006U2-00-0005 |
| Shaft O-Ring | Buna | N70028 | WN70028 |
| Shaft O-Ring | EPDM | E70028 | WE70028 |
| Shaft O-Ring | Viton® | V70028 | WV70028 |
| Seal Seat O Ring | Buna | N70024 | WN70024 |
| Seal Seat O Ring | EPDM | E70024 | WE70024 |
| Seal Seat O Ring | Viton® | V70024 | WV70024 |
| Outer Seal O Ring | Buna | N70035 | WN70035 |
| Outer Seal O Ring | EPDM | E70035 | WE70035 |
| Outer Seal O Ring | Viton® | V70035 | WV70035 |
| Wave spring, Inner Seal | 17-7 SS | 101683 | W006U2-12-0300 |
| Wave Spring, Outer Seal | 17-7 SS | 101684 | W006U2-12-0003 |
| 006 – 018 U2 Complete Single Seal | CBN/SiC/EPDM | — | W006U2-00-2500E |
| 006 – 018 U2 Complete Single Seal | CBN/SiC/Viton® | — | W006U2-00-2500V |
| 006 – 018 U2 Complete Single Seal | SiC/SiC/EPDM | — | W006U2-00-2200E |
| 006 – 018 U2 Complete Single Seal | SiC/SiC/Viton® | — | W006U2-00-2200V |
| 006 – 018 U2 Complete Double Seal | SiC/CBN/SiC/CBN/EPDM | — | W006U2-00-2525E |
| 006 – 018 U2 Complete Double Seal | SiC/CBN/SiC/CBN/Viton® | — | W006U2-00-2525V |
| 006 – 018 U2 Complete Double Seal | Cer/CBN/Cer/CBN/EPDM | — | W006U2-00-7575E |
| 006 – 018 U2 Complete Double Seal | Cer/CBN/Cer/CBN/Viton® | — | W006U2-00-7575V |
| 006 – 018 U2 Complete Double Seal | Cer/Cer/Cer/CBN/EPDM | — | W006U2-00-7775E |
| 006 – 018 U2 Complete Double Seal | Cer/Cer/Cer/CBN/Viton® | — | W006U2-00-7775V |
| 006 – 018 U2 Complete Double Seal | SiC/SiC/EPDM | — | W006U2-00-2225E |
| 006 – 018 U2 Complete Double Seal | SiC/SiC/Viton® | — | W006U2-00-2225V |
| SEAL LIST – Waukesha® U2 030, 034 PD Pump | |||
|---|---|---|---|
| Description | Material | Ref. Part No. | ZMT Part No. |
| 030 – 034 U2 Inner Seal | SiC | 101657 | W030U2-00-0200 |
| 030 – 034 U2 Inner Seal | Cer | 101656 | W030U2-00-0700 |
| 030 – 034 U2 Inner Seal | CBN | 101655 | W030U2-00-0500 |
| 030 – 034 U2 Seal Seat | SiC | 101671 | W030U2-00-2000 |
| 030 – 034 U2 Seal Seat | Cer | 101670 | W030U2-00-7000 |
| 030 – 034 U2 Outer Seal | CBN | 101680 | W030U2-00-0005 |
| Inner Seal O Ring | Buna | N70031 | WN70031 |
| Inner Seal O Ring | EPDM | E70031 | WE70031 |
| Inner Seal O Ring | Viton® | V70031 | WV70031 |
| Seal Seat O Ring | Buna | N70029 | WN70029 |
| Seal Seat O Ring | EPDM | E70029 | WE70029 |
| Seal Seat O Ring | Viton® | V70029 | WV70029 |
| Outer Seal O Ring | Buna | N70041 | WN70041 |
| Outer Seal O Ring | EPDM | E70041 | WE70041 |
| Outer Seal O Ring | Viton® | V70041 | WV70041 |
| Wave spring, Inner Seal | 17-7 SS | 101685 | W030U2-12-0300 |
| Wave Spring, Outer Seal | 17-7 SS | 101686 | W030U2-12-0003 |
| 030 – 034 U2 Complete Single Seal | CBN/SiC/EPDM | — | W030U2-00-2500E |
| 030 – 034 U2 Complete Single Seal | CBN/SiC/Viton® | — | W030U2-00-2500V |
| 030 – 034 U2 Complete Single Seal | SiC/SiC/EPDM | — | W030U2-00-2200E |
| 030 – 034 U2 Complete Single Seal | SiC/SiC/Viton® | — | W030U2-00-2200V |
| 030 – 034 U2 Complete Double Seal | SiC/CBN/SiC/CBN/EPDM | — | W030U2-00-2525E |
| 030 – 034 U2 Complete Double Seal | SiC/CBN/SiC/CBN/Viton® | — | W030U2-00-2525V |
| 030 – 034 U2 Complete Double Seal | Cer/CBN/Cer/CBN/EPDM | — | W030U2-00-7575E |
| 030 – 034 U2 Complete Double Seal | Cer/CBN/Cer/CBN/Viton® | — | W030U2-00-7575V |
| 030 – 034 U2 Complete Double Seal | Cer/Cer/Cer/CBN/EPDM | — | W030U2-00-7775E |
| 030 – 034 U2 Complete Double Seal | Cer/Cer/Cer/CBN/Viton® | — | W030U2-00-7775V |
| 030 – 034 U2 Complete Double Seal | SiC/SiC/EPDM | — | W030U2-00-2225E |
| 030 – 034 U2 Complete Double Seal | SiC/SiC/Viton® | — | W030U2-00-2225V |
| SEAL LIST – Waukesha® U2 045, 060, 064, 130, 134 PD Pump | |||
|---|---|---|---|
| Description | Material | Ref. Part No. | ZMT Part No. |
| 040 – 134 U2 Inner Seal | SiC | 101661 | W130U2-00-0200 |
| 040 – 134 U2 Inner Seal | Cer | 101660 | W130U2-00-0700 |
| 040 – 134 U2 Inner Seal | CBN | 101659 | W130U2-00-0500 |
| 040 – 134 U2 Seal Seat | SiC | 101674 | W130U2-00-2000 |
| 040 – 134 U2 Seal Seat | Cer | 101673 | W130U2-00-7000 |
| 040 – 134 U2 Outer Seal | CBN | 101681 | W130U2-00-0005 |
| Outer Seal O Ring | Buna | N70035 | WN70035 |
| Outer Seal O Ring | EPDM | E70035 | WE70035 |
| Outer Seal O Ring | Viton® | V70035 | WV70035 |
| Seal Seat O Ring | Buna | N70133 | WN70133 |
| Seal Seat O Ring | EPDM | E70133 | WE70133 |
| Seal Seat O Ring | Viton® | V70133 | WV70133 |
| Outer Seal O Ring | Buna | N70043 | WN70043 |
| Outer Seal O Ring | EPDM | E70043 | WE70043 |
| Outer Seal O Ring | Viton® | V70043 | WV70043 |
| Wave spring, Inner Seal | 17-7 SS | 101687 | W130U2-12-0300 |
| Wave Spring, Outer Seal | 17-7 SS | 101688 | W130U2-12-0003 |
| 040 – 134 U2 Complete Single Seal | CBN/SiC/EPDM | — | W130U2-00-2500E |
| 040 – 134 U2 Complete Single Seal | CBN/SiC/Viton® | — | W130U2-00-2500V |
| 040 – 134 U2 Complete Single Seal | SiC/SiC/EPDM | — | W130U2-00-2200E |
| 040 – 134 U2 Complete Single Seal | SiC/SiC/Viton® | — | W130U2-00-2200V |
| 040 – 134 U2 Complete Double Seal | SiC/CBN/SiC/CBN/EPDM | — | W130U2-00-2525E |
| 040 – 134 U2 Complete Double Seal | SiC/CBN/SiC/CBN/Viton® | — | W130U2-00-2525V |
| 040 – 134 U2 Complete Double Seal | Cer/CBN/Cer/CBN/EPDM | — | W130U2-00-7575E |
| 040 – 134 U2 Complete Double Seal | Cer/CBN/Cer/CBN/Viton® | — | W130U2-00-7575V |
| 040 – 134 U2 Complete Double Seal | Cer/Cer/Cer/CBN/EPDM | — | W130U2-00-7775E |
| 040 – 134 U2 Complete Double Seal | Cer/Cer/Cer/CBN/Viton® | — | W130U2-00-7775V |
| 040 – 134 U2 Complete Double Seal | SiC/SiC/EPDM | — | W130U2-00-2225E |
| 040 – 134 U2 Complete Double Seal | SiC/SiC/Viton® | — | W130U2-00-2225V |
| SEAL LIST – Waukesha® U2 210, 320, 324 PD Pump | |||
|---|---|---|---|
| Description | Material | Ref. Part No. | ZMT Part No. |
| 210 – 324 U2 Inner Seal | SiC | 105414 | W320U2-00-0200 |
| 210 – 324 U2 Inner Seal | Cer | 105413 | W320U2-00-0700 |
| 210 – 324 U2 Inner Seal | CBN | 105412 | W320U2-00-0500 |
| 210 – 324 U2 Seal Seat | SiC | 105417 | W320U2-00-2000 |
| 210 – 324 U2 Seal Seat | Cer | 105416 | W320U2-00-7000 |
| 210 – 324 U2 Outer Seal | CBN | 105418 | W320U2-00-0005 |
| Inner Seal O Ring | Buna | N70154 | WN70154 |
| Inner Seal O Ring | EPDM | E70154 | WE70154 |
| Inner Seal O Ring | Viton® | V70154 | WV70154 |
| Seal Seat O Ring | Buna | N70149 | WN70149 |
| Seal Seat O Ring | EPDM | E70149 | WE70149 |
| Seal Seat O Ring | Viton® | V70149 | WV70149 |
| Outer Seal O Ring | Buna | N70160 | WN70160 |
| Outer Seal O Ring | EPDM | E70160 | WE70160 |
| Outer Seal O Ring | Viton® | V70160 | WV70160 |
| Wave spring, Inner Seal | 17-7 SS | 105419 | W320U2-12-0300 |
| Wave Spring, Outer Seal | 17-7 SS | 105420 | W320U2-12-0003 |
| 210 – 324 U2 Complete Single Seal | CBN/SiC/EPDM | — | W320U2-00-2500E |
| 210 – 324 U2 Complete Single Seal | CBN/SiC/Viton® | — | W320U2-00-2500V |
| 210 – 324 U2 Complete Single Seal | SiC/SiC/EPDM | — | W320U2-00-2200E |
| 210 – 324 U2 Complete Single Seal | SiC/SiC/Viton® | — | W320U2-00-2200V |
| 210 – 324 U2 Complete Double Seal | SiC/CBN/SiC/CBN/EPDM | — | W320U2-00-2525E |
| 210 – 324 U2 Complete Double Seal | SiC/CBN/SiC/CBN/Viton® | — | W320U2-00-2525V |
| 210 – 324 U2 Complete Double Seal | Cer/CBN/Cer/CBN/EPDM | — | W320U2-00-7575E |
| 210 – 324 U2 Complete Double Seal | Cer/CBN/Cer/CBN/Viton® | — | W320U2-00-7575V |
| 210 – 324 U2 Complete Double Seal | Cer/Cer/Cer/CBN/EPDM | — | W320U2-00-7775E |
| 210 – 324 U2 Complete Double Seal | Cer/Cer/Cer/CBN/Viton® | — | W320U2-00-7775V |
| 210 – 324 U2 Complete Double Seal | SiC/SiC/EPDM | — | W320U2-00-2225E |
| 210 – 324 U2 Complete Double Seal | SiC/SiC/Viton® | — | W320U2-00-2225V |
| SEAL LIST – Waukesha® U2 210, 320, 324 PD Pump | |||
|---|---|---|---|
| Description | Material | Ref. Part No. | ZMT Part No. |
| 210 – 324 U2 Inner Seal | SiC | 105414 | W320U2-00-0200 |
| 210 – 324 U2 Inner Seal | Cer | 105413 | W320U2-00-0700 |
| 210 – 324 U2 Inner Seal | CBN | 105412 | W320U2-00-0500 |
| 210 – 324 U2 Seal Seat | SiC | 105417 | W320U2-00-2000 |
| 210 – 324 U2 Seal Seat | Cer | 105416 | W320U2-00-7000 |
| 210 – 324 U2 Outer Seal | CBN | 105418 | W320U2-00-0005 |
| Inner Seal O Ring | Buna | N70154 | WN70154 |
| Inner Seal O Ring | EPDM | E70154 | WE70154 |
| Inner Seal O Ring | Viton® | V70154 | WV70154 |
| Seal Seat O Ring | Buna | N70149 | WN70149 |
| Seal Seat O Ring | EPDM | E70149 | WE70149 |
| Seal Seat O Ring | Viton® | V70149 | WV70149 |
| Outer Seal O Ring | Buna | N70160 | WN70160 |
| Outer Seal O Ring | EPDM | E70160 | WE70160 |
| Outer Seal O Ring | Viton® | V70160 | WV70160 |
| Wave spring, Inner Seal | 17-7 SS | 105419 | W320U2-12-0300 |
| Wave Spring, Outer Seal | 17-7 SS | 105420 | W320U2-12-0003 |
| 210 – 324 U2 Complete Single Seal | CBN/SiC/EPDM | — | W320U2-00-2500E |
| 210 – 324 U2 Complete Single Seal | CBN/SiC/Viton® | — | W320U2-00-2500V |
| 210 – 324 U2 Complete Single Seal | SiC/SiC/EPDM | — | W320U2-00-2200E |
| 210 – 324 U2 Complete Single Seal | SiC/SiC/Viton® | — | W320U2-00-2200V |
| 210 – 324 U2 Complete Double Seal | SiC/CBN/SiC/CBN/EPDM | — | W320U2-00-2525E |
| 210 – 324 U2 Complete Double Seal | SiC/CBN/SiC/CBN/Viton® | — | W320U2-00-2525V |
| 210 – 324 U2 Complete Double Seal | Cer/CBN/Cer/CBN/EPDM | — | W320U2-00-7575E |
| 210 – 324 U2 Complete Double Seal | Cer/CBN/Cer/CBN/Viton® | — | W320U2-00-7575V |
| 210 – 324 U2 Complete Double Seal | Cer/Cer/Cer/CBN/EPDM | — | W320U2-00-7775E |
| 210 – 324 U2 Complete Double Seal | Cer/Cer/Cer/CBN/Viton® | — | W320U2-00-7775V |
| 210 – 324 U2 Complete Double Seal | SiC/SiC/EPDM | — | W320U2-00-2225E |
| 210 – 324 U2 Complete Double Seal | SiC/SiC/Viton® | — | W320U2-00-2225V |
| SEAL LIST – Waukesha® 2045, 2065LV, 2065, 2065HV, 2075, 2085LV, 2085, 2105 Centrifugal Pump | |||
|---|---|---|---|
| Description | Material | Ref. Part No. | ZMT Part No. |
| Waukesha 200 Rotary Nose/Washer – #5 | SiC | 9-225C | W200-09-2000 |
| Waukesha 200 Rotary Nose/Washer- #5 | CBN | 9-225A | W200-09-5000 |
| Waukesha 200 Rotary Nose/Washer- #5 | TC | 9-225F | W200-09-9000 |
| Waukesha 200 Rotary Nose/Washer- #5, #6 | TC/Viton® | 9-225F w/o-ring | W200-09-9000V |
| Waukesha 200 Seal Retainer | 316L | 23-79 | W200-10-0100 |
| Waukesha 200 Spring | SS | 24-65 | W200-12-1000 |
| Waukesha 200 Wave Spring | 17-7SS | 24-65 | W200Z-12-1000 |
| Waukesha 200 Spring Retainer/Collar | 316L | 23-77 | W200-18-1000 |
| Waukesha 200 Tabbed Washer | 316L | 43-87 | W200-23-1000 |
| Waukesha 2040 Type 1 ‘BASIC’ Sgl Seal Kit- #5. 6, 2, 8 | CBN/Viton® | 309-241 | W200-309-241 |
| Waukesha 2065 Type 1 ‘BASIC’ Sgl Seal Kit- #5. 6, 2, 8 | CBN/Viton® | 309-242 | W200-309-242 |
| Waukesha 2075/2085 Type 1 ‘BASIC’ Sgl Seal Kit- #5. 6, 2, 8 | CBN/Viton® | 309-243 | W200-309-243 |
| Waukesha 2105 Type 1 ‘BASIC’ Sgl Seal Kit- #5. 6, 2, 8 | CBN/Viton® | 309-244 | W200-309-244 |
| Waukesha 2040 Type 1 ‘COMPLETE’ Sgl Seal Kit w/ SiC Stat.- #5. 6, 2, 8, 4, 9 | CBN/SiC/Viton® | 309-245 | W200-309-245 |
| Waukesha 2065 Type 1 ‘COMPLETE’ Sgl Seal Kit w/ SiC Stat.- #5. 6, 2, 8, 4, 9 | CBN/SiC/Viton® | 309-246 | W200-309-246 |
| Waukesha 2075/2085 Type 1 ‘COMPLETE’ Sgl Seal Kit w/ SiC Stat.- #5. 6, 2, 8, 4, 9 | CBN/SiC/Viton® | 309-247 | W200-309-247 |
| Waukesha 2105 Type 1 ‘COMPLETE’ Sgl Seal Kit w/ SiC Stat.- #5. 6, 2, 8, 4, 9 | CBN/SiC/Viton® | 309-248 | W200-309-248 |
| Waukesha 2040 Type 4 ‘BASIC’ Dbl Seal Kit | CBN/Viton® | 309-249 | W200-309-249 |
| Waukesha 2065 Type 4 ‘BASIC’ Dbl Seal Kit | CBN/Viton® | 309-250 | W200-309-250 |
| Waukesha 2075/2085 Type 4 ‘BASIC’ Dbl Seal Kit | CBN/Viton® | 309-251 | W200-309-251 |
| Waukesha 2105 Type 4 ‘BASIC’ Dbl Seal Kit | CBN/Viton® | 309-252 | W200-309-252 |
| Waukesha 2040 Type 4 ‘COMPLETE’ Dbl Seal Kit w/ SiC Stat. | CBN/SiC/CBN/SiC/Viton® | 309-253 | W200-309-253 |
| Waukesha 2065 Type 4 ‘COMPLETE’ Dbl Seal Kit w/ SiC Stat. | CBN/SiC/CBN/SiC/Viton® | 309-254 | W200-309-254 |
| Waukesha 2075/2085 Type 4 ‘COMPLETE’ Dbl Seal Kit w/ SiC Stat. | CBN/SiC/CBN/SiC/Viton® | 309-255 | W200-309-255 |
| Waukesha 2105 Type 4 ‘COMPLETE’ Dbl Seal Kit w/ SiC Stat. | CBN/SiC/CBN/SiC/Viton® | 309-256 | W200-309-256 |
| Waukesha 200 Stationary, Over-Sized Seat- #2 | SiC | 23-17 (23-17G) | W200-61-0200 |
| Waukesha 200 Stationary, Over-Sized Cup Seat- #2, 8 | SiC/Viton® | 23-17 (23-17G) | W200-61-0200V |
| Waukesha 200 Over-Sized Cup- #8 | Viton® | 9-37 | W200-61-0V00 |
| Waukesha 200 ‘SEAL’ Kit – Rotary Carbon w/Over-Sized Cup Seat Only- #2, 5, 6, 8 | CBN/SiC/Viton® | — | W200-SK61-2500V |
| Waukesha 200 ‘SEAL’ Kit – Rotary Tungsten-Carbide w/Over-Sized Cup Seat Only | TC/SiC/Viton® | — | W200-SK61-9200V |
Waukesha® U-1 & U-2 Pump Engineered Seals
We design and manufacture mechanical seals for the Food, Dairy, and Pharmaceutical Industries. Our proven innovative seal designs will allow the mechanical seal to perform while remaining free and clean of product buildup; this will result in a reduction or elimination of product contamination.
Our design philosophy is to:
- “Keep it Simple”. This means low costs, better reliability, ease of installation, and improved seal hygiene.
- Our Zero Maintenance Seals will outperform your existing O.E.M. mechanical seals, guaranteed. Since the cartridge seals mounts to a modified back-plate, the seal no longer wears out the back-plate. Saving you money and time to not resurface or replace your stainless steel back-plate.
- The cartridge seal is easier to install than the O.E.M, and offer 3-4 times the life of the original seal.
- All ZM Technologies’ engineered mechanical seals are flushless.
- Seal kits are used to repair the seal for a fraction of the price of new.
ZMT stocks seals for the Universal 1 & 2 PD pump models from the 006 to the 523. These seals are designed specifically to operate for a long life at high pressures with a water flush. Universal 1 & 2 pump models 030 through 220 and the U2 320 seal, use material retainers for much improved durability and repairability. ZMT cartridge seal specially designed to fit Waukesha® U1 pump models 320 through 523 are also in stock.
Contact the factory regarding the equipment in your plant for information about how ZMT engineered seals can be used in your application.
WAUKESHA® PUMP SEALS
Waukesha® U1 & U2 Flushless Seals
Waukesha® 320-523 Cartridge Seal
WHY USE ZMT ENGINEERED WAUKESHA® PUMP SEALS
- Do you use a double seal for your Waukesha® pumps?
- What do you do with your mechanical seals after you remove them from the pump?
- Do you like the idea of using water to flush your seals?
- Do you consider production downtime and mechanic time as a part of the total pump maintenance expense?
- If our mechanical seal eliminates water consumption and offers 4 – 6 times the seal life, would your TOTAL maintenance expenses be increased or decreased?
PLEASE CONSIDER THE FOLLOWING ISSUES:
- Product contamination.
- Wasting water – one pump will use 1 million gallons of water per year.
- A water flush means you pay for the water twice – first, from the well or city, second, to the sewer.
- Water dumped on the ground may be unsightly and a hazard.
- U1 006-018 ZMT Seal Parts
- U1 030-040 ZMT Seal Parts
- U1 060-134 ZMT Seal Parts
- U1 220-224 ZMT Seal Parts
- U1 320-324 ZMT Cartridge Seals
- U2 030-034 ZMT Seal Parts
- U2 045-134 ZMT Seal Parts
- U2 180-224 ZMT Seal Parts
- U2 210-324 ZMT Seal Parts
| SEAL LIST – ZMT Engineered Waukesha® U1 006, 015, 018, 024 PD Pump | |||
|---|---|---|---|
| Description | Material | ZMT Part No. | |
| 006 – 024 ZMT Engineered Inner Seal w/Retainer | SiC/SS | — | W006Z-00-0200 |
| 006 – 024 ZMT Engineered Seal Seat w/Retainer | SiC/SS | — | W006Z-00-2000 |
| 006 – 024 ZMT Engineered Complete Seal | SiC/SiC/EPDM | — | W006Z-00-2200E |
| 006 – 024 ZMT Engineered Complete Seal | SiC/SiC/Viton® | — | W006Z-00-2200V |
| SEAL LIST – ZMT Engineered Waukesha® U1 030, 034, 040 PD Pump | |||
|---|---|---|---|
| Description | Material | ZMT Part No. | |
| 030 – 034 – 040 ZMT Engineered Inner Seal w/Retainer | SiC/SS | — | W030Z-00-0200 |
| 030 – 034 – 040 ZMT Engineered Seal Seat w/Retainer | SiC/SS | — | W030Z-00-2000 |
| 030 – 034 – 040 ZMT Engineered Complete Seal | SiC/SiC/EPDM | — | W030Z-00-2200E |
| 030 – 034 – 040 ZMT Engineered Complete Seal | SiC/SiC/Viton® | — | W030Z-00-2200V |
| SEAL LIST – ZMT Engineered Waukesha® U1 060, 064, 130, 134 PD Pump | |||
|---|---|---|---|
| Description | Material | ZMT Part No. | |
| 060 – 134 ZMT Engineered Inner Seal w/Retainer | SiC/SS | — | W130Z-00-0200 |
| 060 – 134 ZMT Engineered Seal Seat w/Retainer | SiC/SS | — | W130Z-00-2000 |
| 060 – 134 ZMT Engineered Complete Seal | SiC/SiC/EPDM | — | W130Z-00-2200E |
| 060 – 134 ZMT Engineered Complete Seal | SiC/SiC/Viton® | — | W130Z-00-2200V |
| SEAL LIST – ZMT Engineered Waukesha® U1 220, 224 PD Pump | |||
|---|---|---|---|
| Description | Material | ZMT Part No. | |
| 220 – 224 ZMT Engineered Inner Seal w/Retainer | SiC/SS | — | W220Z-00-0200 |
| 220 – 224 ZMT Engineered Seal Seat w/Retainer | SiC/SS | — | W220Z-00-2000 |
| 220 – 224 ZMT Engineered Complete Seal | SiC/SiC/EPDM | — | W220Z-00-2200E |
| 220 – 224 ZMT Engineered Complete Seal | SiC/SiC/Viton® | — | W220Z-00-2200V |
| SEAL LIST – ZMT Engineered Waukesha® U1 320, 324 PD Pump | |||
|---|---|---|---|
| Description | Material | ZMT Part No. | |
| 320 – 324 ZM Engineered Complete Single Cartridge Seal – (Per Shaft) | SiC/SiC/EPDM | – | W320Z-00-2200E |
| 320 – 324 ZM Engineered Complete Single Cartridge Seal – (Per Shaft) | SiC/SiC/Viton® | – | W320Z-00-2200V |
| 320 – 324 ZM Engineered Complete Double Cartridge Seal – (Per Shaft) | SiC/SiC/SiC/CBN/EPDM | – | W323Z-00-2225E |
| 320 – 324 ZM Engineered Complete Double Cartridge Seal – (Per Shaft) | SiC/SiC/SiC/CBN/Viton® | – | W323Z-00-2225V |
| 320 – 324 ZM Engineered Complete Double Cartridge Seal – (Per Shaft) | SiC/SiC/SiC/CBN/Silicone | – | W323Z-00-2225S |
| 320 – 324 ZM Engineered Complete Single Cartridge Seal-Per Shaft- Repair Kit | SiC/SiC/EPDM | W320Z-RK-2200E | |
| 320 – 324 ZM Engineered Complete Single Cartridge Seal-Per Shaft- Repair Kit | SiC/SiC/Viton® | W320Z-RK-2200V | |
| 320 – 324 ZM Engineered Complete Double Cartridge Seal -Per Shaft- Repair Kit | SiC/SiC/SiC/CBN/EPDM | W323Z-RK-2225E | |
| 320 – 324 ZM Engineered Complete Double Cartridge Seal-Per Shaft- Repair Kit | SiC/SiC/SiC/CBN/Viton® | W323Z-RK-2225V | |
| 320 – 324 ZM Engineered Complete Double Cartridge Seal-Per Shaft- Repair Kit | SiC/SiC/SiC/CBN/Silicone | W323Z-RK-2225S | |
| SEAL LIST – ZMT Engineered Waukesha® U2 030, 034 PD Pump | |||
|---|---|---|---|
| Description | Material | ZMT Part No. | |
| 030 – 034 U2 ZMT Engineered Seal Seat w/Retainer | SiC/SS | – | W030U2Z-00-2000 |
| 030 – 034 U2 ZMT Engineered Inner Seal w/Retainer | SiC/SS | – | W030U2Z-00-0200 |
| 030 – 034 U2 ZMT Engineered Complete Single Seal | SiC/SiC/EPDM | – | W030U2Z-00-2200E |
| 030 – 034 U2 ZMT Engineered Complete Single Seal | SiC/SiC/Viton® | – | W030U2Z-00-2200V |
| SEAL LIST – ZMT Engineered Waukesha® U2 045, 060, 064, 130, 134 PD Pump | |||
|---|---|---|---|
| Description | Material | ZMT Part No. | |
| 040 – 134 U2 ZMT Engineered Seal Seat w/Retainer | SiC/SS | – | W130U2Z-00-2000 |
| 040 – 134 U2 ZMT Engineered Inner Seal w/Retainer | SiC/SS | – | W130U2Z-00-0200 |
| 040 – 134 U2 ZMT Engineered Complete Single Seal | SiC/SiC/EPDM | – | W130U2Z-00-2200E |
| 040 – 134 U2 ZMT Engineered Complete Single Seal | SiC/SiC/Viton® | – | W130U2Z-00-2200V |
| SEAL LIST – ZMT Engineered Waukesha® U2 180, 184, 220, 224 PD Pump | |||
|---|---|---|---|
| Description | Material | ZMT Part No. | |
| 180 – 224 U2 ZMT Engineered Seal Seat w/Retainer | SiC/SS | – | W220U2Z-00-2000 |
| 180 – 224 U2 ZMT Engineered Inner Seal w/Retainer | SiC/SS | – | W220U2Z-00-0200 |
| 180 – 224 U2 ZMT Engineered Complete Single Seal | SiC/SiC/EPDM | – | W220U2Z-00-2200E |
| 180 – 224 U2 ZMT Engineered Complete Single Seal | SiC/SiC/Viton® | – | W220U2Z-00-2200V |
| SEAL LIST – ZMT Engineered Waukesha® U2 210, 320, 324 PD Pump | |||
|---|---|---|---|
| Description | Material | ZMT Part No. | |
| 210 – 324 U2 ZMT Engineered Seal Seat w/Retainer | SiC/SS | – | W320U2Z-00-2000 |
| 210 – 324 U2 ZMT Engineered Inner Seal w/Retainer | SiC/SS | – | W320U2Z-00-0200 |
| 210 – 324 U2 ZMT Engineered Complete Single Seal | SiC/SiC/EPDM | – | W320U2Z-00-2200E |
| 210 – 324 U2 ZMT Engineered Complete Single Seal | SiC/SiC/Viton® | – | W320U2Z-00-2200V |
