      TRI-CLOVER® PUMP PARTS

      ZM Technologies manufactures and sells many different Centrifugal and Positive Displacement sanitary pumps, like the Tri-Clover® C and EH Series centrifugal pump and the Waukesha® U1 & U2 Circumferential Piston PD Pump.

      All parts are guaranteed 100% interchangeable with OEM.

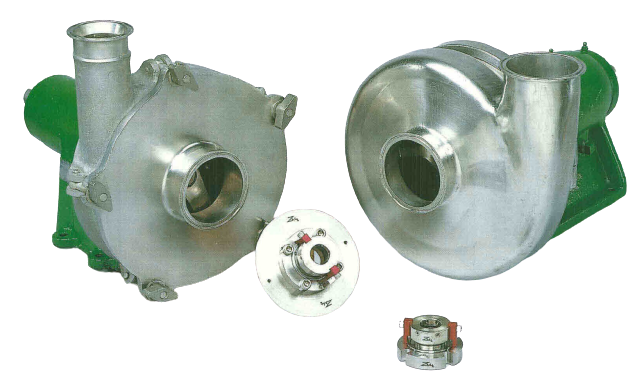

      TRI-CLOVER® C-SERIES PUMP PARTS

      We offer all parts for the Tri-Clover® C-Series and SP pumps. ZM Technologies offers several upgrades that make our pumps “Better than O.E.M.”.

      Here are some of the common items we stock:

      • Stub-shafts

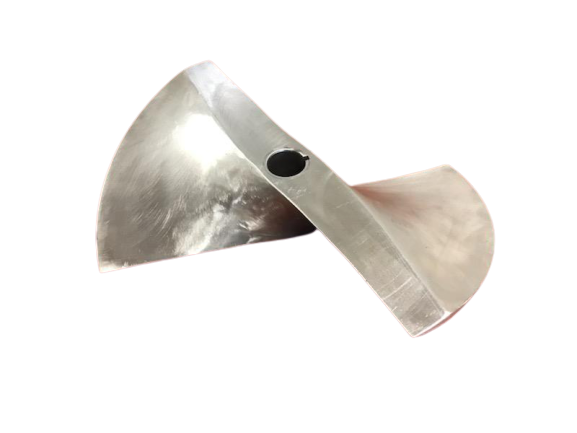

      • Impellers
      • Volute gaskets
      • Impeller pin or nut
      • Pump case and covers are available from the factory.

      Available upgrades for your C-Series pump:

      • A threaded stub-shaft.
      • 304SS motor adapter
      • Longer life mechanical seal

      Contact ZM Technologies professional staff for C-4410 pump parts. Complete pumps or parts can be purchased. Most parts are in stock, or readily available.

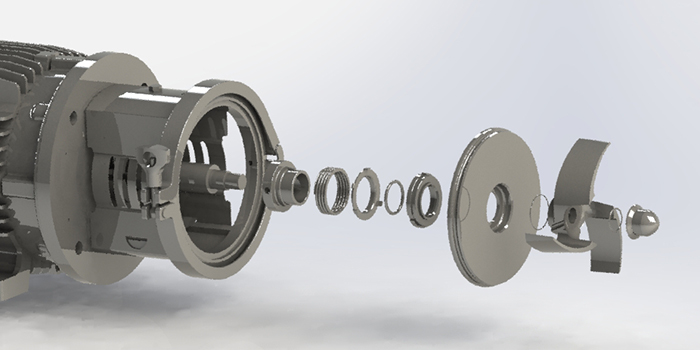

      ACD-SealC_impeller
      Pump Parts List – Tri-Clover®  C-114 Centrifugal Pump
      KeyDescriptionPart Number
      1Casing (Clamp) SanitaryS114M-01C-316L
      1Casing (Bevel Seat) SanitaryS114T-01C-316L
      1Casing ( N.P.T.) Glass BeadedS114S-01C-316L
      1Casing (Clamp) Glass BeadedS114MI-01C-316L
      1Casing (Bevel Seat) Glass BeadedS114TI-01C-316L
      1Casing (Flanged) Glass BeadedS114F-01D-316L
      2ImpellerS114-02C-316L
      6ASet Screw ( shaft D56 )SC1305A-SS
      6ASet Screw ( shaft D14 )SC1303A-SS
      6EUniversal Stub Shaft-Std D56C114E56T-06-316L
      6EUniversal Stub Shaft-Std D14C114E-14T-06-316L
      6EUniversal Stub Shaft-Std D18C114E-18T-06-316L
      6DUniversal Stub Shaft-Trd D56C114E56TT-06-316L
      6DUniversal Stub Shaft-Trd D14C114E14TT-06-316L
      6DUniversal Stub Shaft-Trd D18C114E18TT-06-316L
      11Backplate D114D-11-316
      11BBackplate (E Balanced)114E-11B-316
      11FBackplate Pin216D-11-1-S
      11HBackplate (DG Seat)SP114G-11-316L
      17Follower114E-17-316
      17AMachine ScrewSC1106E-SS
      17BO-ring Buna17-106-U-25**
      17BO-ring Viton17-106-U-25**
      17BO-ring EPDM17-106-U-25**
      17CLockwasher–
      17JSS Gland Ring (DG)SP114G-17-316L
      17KBolt/Screw (DG)SC1110H-SS
      17MLockwasher (DG)LWA-1100-SS
      24Retainer (Impeller)114D-24B-316L
      24ACastellated NutSP114F-24-316
      24BCotter Pin (Impeller)16-113-1/8X1-316
      40Deflector QC100/QC114-56-14US114D66-40-U
      40Deflector QC114-18/QC216-56-14-18114D18T-40
      71Adapter QC-114-56/14114E56T-71C-C
      71Adapter QC-114-18114E-18T-71C-C
      71AAdapter Pin216D-71A-1-S
      71BAdapter Mounting Screw nema 56/14SC1512H-SS
      71BAdapter Mounting Screw nema 18SC 1710H-SS
      75Clamp QC-114S114-75AR-S
      90Casing Gasket (Buna)S114-90A-U
      90Casing Gasket (Viton)S114-90A-V
      127Water Cascade Assembly114D-127-01
      131Seal Guard AssemblyC114-18T-131A-S
      131Seal Guard AssemblyC114-56T-131A-S
      207Adjustable Leg114D-207-CS
      209Adjustable Leg Bracket  56114D56T-209A-CS
      209Adjustable Leg Bracket 14114D145T-209-CS
      209Adjustable Leg Bracket 18114D184T-209A-CS
      209ASet screw ( square head)SC1106C4-SS
      209ASet screw ( square head)SC1107C4-SS
      209BBracket Mounting screwSC1307H-SS
      209BBracket Mounting screwSC1510H-SS
      –Leg Braket Assembly–
      209CWasher bracket mounting screwWA1300-SS
      209CWasher bracket mounting screwWA1500-SS
      Pump Parts List – Tri-Clover®  C-216 Centrifugal Pump
      KeyDescriptionPart Number
      1Casing (Clamp) SanitaryS216M-01C-316L
      1Casing (Bevel Seat) SanitaryS216T-01C-316L
      1Casing ( N.P.T.) Glass BeadedS216S-01C-316L
      1Casing (Clamp) Glass BeadedS216MI-01C-316
      1Casing (Bevel Seat) Glass BeadedS216TI-01C-316
      1Casing (Flanged) Glass BeadedS216F-01D-316L
      2ImpellerS216-02C-316L
      6ASet Screw ( shaft D56 )SC1505A-SS
      6ASet Screw ( shaft D14 )SC1504A-SS
      6ASet Screw ( Shaft D18 )SC1303A-SS
      6ASet Screw ( Shaft D21 )SC1504A-SS
      6ASet Screw ( Shaft D25 )SC1504A-SS
      6EUniversal Stub Shaft-Std D56CS216E56T-06-316L
      6EUniversal Stub Shaft-Std D14CS216E14T-06-316L
      6EUniversal Stub Shaft-Std D18CS216E-18T-06-316L
      6EUniversal Stub Shaft-Std D21C216E21T-06-316L
      6EUniversal Stub Shaft-Std D25C216E25T-06-316L
      6DUniversal Stub Shaft-Trd D56216E56TT-06A-316L
      6DUniversal Stub Shaft-Trd D14216E-14TT-06A-316;
      6DUniversal Stub Shaft-Trd D18216E18TT-06A-316L
      6DUniversal Stub Shaft-Trd D21C216E21TT-06-316L
      6DUniversal Stub Shaft-Trd D25C216E25TT-06-316L
      24ACastellated NutSP216F-24-316L
      24BCotter Pin (Impeller)16-113-1/8×1 1/2-316
      11Backplate D216D-11-316
      11BBackplate (E Balanced)216E-11B-316
      11FBackplate Pin216D-11-1-S
      11HBackplate (DG Seat)SP216G-11-316L
      17Follower216E-17-316
      17AMachine ScrewSC1308H-SS
      17BO-ring Buna17-275-U
      17BO-ring Viton17-275-U
      17BO-ring EPDM17-275-U
      17CLockwasherLWA1300-SS
      17JSS Gland Ring (DG)SP216G-17-316L
      17KBolt/Screw (DG)SC1310H-SS
      17MLockwasher (DG)LWA-1300-SS
      24Retainer (Impeller)216D-24B-316L
      40Deflector QC216D21216D21T-40-U
      40Deflector QC216dD25328D28-40
      40Deflector QC114-18/QC216-56-14-18216D21-40
      71Adapter QC-216-56/14216D56T-71D-C
      71Adapter QC-216-18216D18T-71D-C
      71Adapter QC-216-21216E21T-71D-C
      71Adapter QC-216-25216E25T-71D-C
      71AAdapter Pin216D-71A-1-S
      71BAdapter Mounting Screw 56/14SC1510H-S
      71BAdapter Mounting Screw 18/21/25SC1710H-SS
      75Clamp QC-216S216-75AR-S
      90Casing Gasket (Viton)S216-90A-V
      127Water Cascade Assembly216D-127-01
      127ALocknut114D-127-02
      131Seal Guard Assembly D56/14C216-56T-131-S
      131Seal Guard Assembly D18C216-18T-131-S
      131Seal Guard Assembly D21/25C216-21T-131B-S
      207Adjustable Leg 56/14/18/21114D-207-CS
      207Adjustable Leg 25216D-207-CS
      209Adjustable Leg Bracket QC*56114D56T-209A-CS
      209Adjustable Leg Bracket QC*14114D145T-209-CS
      209Adjustable Leg Bracket QC*18114D184T-209A-CS
      209Adjustable Leg Bracket QC*21216D215T-209A-CS
      209Adjustable Leg Bracket QC*25216D256T-209A-CS
      209ASet Screw (square Hd.) 56/14SC1106C4-SS
      209ASet Screw (square Hd.) 18/21/25SC1107C4-SS
      –Ferrule protector 1 1/2″–
      –Ferrule protector 2″–
      209BBracket Mounting screw 56/14SC1307H-SS
      209BBracket Mounting screw 18/21SC1512H-SS
      209BBracket Mounting screw 25SC1714H-SS
      –Leg Braket Assembly–
      209CWasher bracket mounting screw 56/14WA1300-SS
      209CWasher bracket mounting screw 18/21/25WA1500-SS
      Pump Parts List – Tri-Clover®  C-218 Centrifugal Pump
      KeyDescriptionPart Number
      1Casing (Clamp) SanitaryS218M-01D-316L
      1Casing (Bevel Seat) SanitaryS218T-01D-316L
      1Casing ( N.P.T.) Glass BeadedS218S-01D-316L
      1Casing (Clamp) Glass BeadedS218MI-01D-316
      1Casing (Bevel Seat) Glass BeadedS218TI-01D-316
      1Casing (Flanged) Glass BeadedS218F-01E-316L
      2Impeller 218S218-02C-316L
      6ASet Screw ( shaft D14 )SC1506A-SS
      6ASet Screw ( shaft D18 )SC1506A-SS
      6ASet Screw ( Shaft D21 )SC1506A-SS
      6ASet Screw ( Shaft D25 )SC1506A-SS
      6ASet Screw ( Shaft D28 )SC1506A-SS
      6EUniversal Stub Shaft-Std D143286E14T-06B-316L
      6EUniversal Stub Shaft-Std D18CS328E18T-06-316L
      6EUniversal Stub Shaft-Std D21CS328E21T-06-316L
      6EUniversal Stub Shaft-Std D25CS328E25T-06-316L
      6EUniversal Stub Shaft-Std D28C328E28T-06-316L
      6DUniversal Stub Shaft-Trd D14328E14TT-06A-316L
      6DUniversal Stub Shaft-Trd D18328E18TT-06A-316L
      6DUniversal Stub Shaft-Trd D21328E21TT-06A-316L
      6DUniversal Stub Shaft-Trd D25328E25TT-06A-316L
      6DUniversal Stub Shaft-Trd D28328E28TT-06-316L
      11Backplate D328D-11-316
      11BBackplate (E Balanced)328E-11B-316
      11FBackplate Pin216D-11-1-S
      11HBackplate (DG Seat)328G-11-316
      17Follower328E-17-316
      17AMachine ScrewSC1308H-SS
      17BO-ring Buna17-274-U
      17BO-ring Viton17-274-U
      17BO-ring EPDM17-274-U
      17CLockwasherLWA1300-SS
      17JSS Gland Ring (DG)SP328G-17-316L
      17KBolt/Screw (DG)SC1311H-SS
      17MLockwasher (DG)LWA-1300-SS
      24Retainer (Impeller)328D-24B-316L
      24ACastellated NutSP328F-24-316
      24BCotter Pin (Impeller)16-113-1/8X2-316
      40Deflector QC218D21/25328D28-40-U
      40Deflector QC218D14/18328D18-40-U
      40Deflector QC218D28328D28T-40-U
      71Adapter QC-218-14328D14T-71C-C
      71Adapter QC-328-18328D18T-71C-C
      71Adapter QC-328-21328D21T-71C-C
      71Adapter QC-328-25328D25T-71C-C
      71Adapter QC-328-28328D28T-71C-C
      71AAdapter Pin216D-71A-1-S
      71BAdapter Mounting Screw 18/21/25/28SC1710H-SS
      71BAdapter Mounting Screw 32SC1910H-SS
      71BAdapter Mounting Screw 14SC1510H-S
      75Clamp QC-328S328-75AR-S
      90Casing Gasket (Buna)S328-90A-U
      90Casing Gasket (Viton)S328-90A-V
      127Water Cascade Assembly328D-127-01
      131Seal Guard Assembly D14C328-14T-131-S
      131Seal Guard Assembly D18C328-18T-131-S
      131Seal Guard Assembly D21C328-21T-131-S
      131Seal Guard Assembly D25C328-25T-131-S
      131Seal Guard Assembly D28C328-28T-131-S
      207Adjustable Leg 25/28216D-207-CS
      207Adjustable Leg 14/18/21114D-207-CS
      209Adjustable Leg Bracket QC*14114D145T-209-CS
      209Adjustable Leg Bracket QC*18114D184T-209A-CS
      209Adjustable Leg Bracket QC*21216D215T-209A-CS
      209Adjustable Leg Bracket QC*25216D256T-209A-CS
      209Adjustable Leg Bracket QC*28216D286T-209A-CS
      209ASet Screw (square Hd.)SC1107C4-SS
      –Ferrule protector 1 1/2″–
      –Ferrule protector 2″–
      209BBracket Mounting screw 14/18/21SC1512H-SS
      209BBracket Mounting screw 25/28SC1714H-SS
      –Leg Braket Assembly–
      209CWasher bracket mounting screwWA1500-SS
      Pump Parts List – Tri-Clover®  C-328 Centrifugal Pump
      KeyDescriptionPart Number
      1Casing (Clamp) SanitaryS328M-01C-316L
      1Casing (Bevel Seat) SanitaryS328T-01CC-316
      1Casing ( N.P.T.) Glass BeadedS328S-01C-316
      1Casing (Clamp) Blass BeadedS328MI-01C-316
      1Casing (Bevel Seat) Glass BeadedS328TI-01C-316
      1Casing (Flanged) Glass BeadedS328F-01D-316L
      2Impeller 328S328-02C-316
      6ASet Screw ( shaft D32 )SC1506A-SS
      6ASet Screw ( shaft D18 )SC1506A-SS
      6ASet Screw ( Shaft D21 )SC1506A-SS
      6ASet Screw ( Shaft D25 )SC1506A-SS
      6ASet Screw ( Shaft D28 )SC1506A-SS
      6EUniversal Stub Shaft-Std D32C328E32T-06-316L
      6EUniversal Stub Shaft-Std D18CS328E18T-06-316L
      6EUniversal Stub Shaft-Std D21CS328E21T-06-316L
      6EUniversal Stub Shaft-Std D25CS328E25T-06-316L
      6EUniversal Stub Shaft-Std D28C328E28T-06-316L
      6DUniversal Stub Shaft-Trd D14328E14TT-06A-316L
      6DUniversal Stub Shaft-Trd D18328E18TT-06A-316L
      6DUniversal Stub Shaft-Trd D21328E21TT-06A-316L
      6DUniversal Stub Shaft-Trd D25328E25TT-06A-316L
      6DUniversal Stub Shaft-Trd D28328E28TT-06A-316L
      6DUniversal Stub Shaft-Trd D32C328E32TT-06-316L
      11Backplate D328D-11-316
      11BBackplate (E Balanced)328E-11B-316
      11FBackplate Pin216D-11-1-S
      11HBackplate (DG Seat)328G-11-316
      17Follower328E-17-316
      17AMachine ScrewSC1308H-SS
      17BO-ring17-274-U
      17BO-ring Viton17-274-U
      17BO-ring EPDM17-274-U
      17CLockwasherLWA1300-SS
      17JSS Gland Ring (DG)SP328G-17-316L
      17KBolt/Screw (DG)SC1311H-SS
      17MLockwasher (DG)LWA-1300-SS
      24Retainer (Impeller)328D-24B-316L
      24ACastellated Nut (Impeller)SP328F-24-316
      24BCotter Pin (Impeller)16-113-1/8X2-316
      40Deflector QC218D21/25328D28-40-U
      40Deflector QC218D14/18328D18-40-U
      40Deflector QC218D28/32328D28T-40-U
      71Adapter QC-328-32328E32T-71B-C
      71Adapter QC-328-18328D18T-71C-C
      71Adapter QC-328-21328D21T-71C-C
      71Adapter QC-328-25328D25T-71C-C
      71Adapter QC-328-28328D28T-71C-C
      71AAdapter Pin216D-71A-1-s
      71BAdapter Mounting Screw 18/21/25/28SC1710H-SS
      71BAdapter Mounting ScrewSC1510H-S
      75Clamp QC-328S328-75AR-S
      90Casing Gasket (Viton)S328-90A-V
      127Water Cascade Assembly328D-127-01
      131Seal Guard Assembly D32C328-28T-131-S
      131Seal Guard Assembly D18C328-18T-131-S
      131Seal Guard Assembly D21C328-21T-131-S
      131Seal Guard Assembly D25C328-25T-131-S
      131Seal Guard Assembly D28C328-28T-131-S
      207Adjustable Leg 25/28/32–
      207Adjustable Leg 18/21–
      209Adjustable Leg Bracket QC*32–
      209Adjustable Leg Bracket QC*18114D184T-209A-CS
      209Adjustable Leg Bracket QC*21216D215T-209A-CS
      209Adjustable Leg Bracket QC*25216D256T-209A-CS
      209Adjustable Leg Bracket QC*28216D286T-209A-CS
      209ASet Screw (square Hd.)SC1107C4-SS
      –Ferrule protector 2″–
      –Ferrule protector 3″–
      209BBracket Mounting screw 18/21SC1512H-SS
      209BBracket Mounting screw 25/28SC1714H-SS
      –Leg Braket Assembly–
      209CWasher bracket mounting screw 18/21/28WA1500-SS
      209CWasher bracket mounting screw 25/32WA1700-SS

      TRI-CLOVER® EH PUMP PARTS

      We offer all parts for the Tri-Clover® 3EH & 4EH series pumps. ZM Technologies offers several upgrades that make our pumps “Better than O.E.M.”.

      Here are some of the common items we stock:

      • 17-4-shafts
      • Impellers
      • Cast Iron Bearing Frames
      • Volute gaskets
      • Impeller nut & pin
      • Stuffing box & Case Nuts
      • Stuffing box
      • Pump case and covers are available from the factory.

      Available upgrades for your EH-Series pump:

      • Longer life mechanical seal

      Complete pumps or parts can be purchased. Most parts are in stock, or readily available.

      Tri-Clover_Seal_LitTri-Clover_Seal_Lit
      Pump Parts List – Tri-Clover®  3EH Centrifugal Pump
      DESCRIPTIONMaterialReference Part No.ZMT PART NUMBER
      Complete 3EH Pump w/FlangesC.I./316SS T3EH-P-21E1-1-1125SS
      Complete 3EH Pump w/Tri-ClampC.I./316SS T3EH-P-21E4-1-1125SS
      Impeller316SS3EH-100-05-316T3EH-100-05-316
      Casing316SS3EHM-141A-01-316T3EH-141A-01-316
      Shaft17-4 PH2-1/2EH-105-07B-316T3EH-105-07B-316
      Stuffing Box316SS2-1/2EH-141-51-316T3EH-141-51-316
      Bearing Seal CompleteBuna/316SS2-1/2EH-105-72AT3EH-105-72A
      Bearing Oil Seal OnlyBuna T3EH-105-72OS
      Locknut-Impeller316SS2-1/2EH-153A-24-316T3EH-153A-24-316
      Locknut-Stuffing Box316SS2-1/2EH-141-48-ST3EH-141-48-S
      Cap Seal316SS2-1/2EH-141-103-ST3EH-141-103-S
      Locknut-Casing316SS2-1/2EH-106-46-ST3EH-106-46-S
      Retainer316SS2-1/2EH-106-30T3EH-106-30
      Case GasketEPDM3EH-100-20T3EH-100-20
      Stuffing Box GasketC.N.A.2-1/2EH-141-79T3EH-141-79
      Packing – EPREPDM2-1/2EH-141-78T3EH-141-78
      Bearing Shim – .005316SS2-1/2EH-143A-139-005T3EH-143A-139-005
      Bearing Shim – .010316SS2-1/2EH-143A-139-010T3EH-143A-139-010
      Impeller Shim – .005316SSSP328-133-005T3EH-133-005-S
      Impeller Shim – .010316SSSP328-133-010T3EH-133-010-S
      Pin304SS2EJ105-52-ST3EH-2EJ105-52-S
      Eye Bolt304SS2-1/2EH-143-A21-ST3EH-143-A21-S
      Nut-Casing316SSR60-2-86B-ST3EH-R60-2-86B-S
      Key – Impeller304SS2BEH-100-06-316T3EH-100-06-316
      Pump Parts List – Tri-Clover®  4EH Centrifugal Pump
      DESCRIPTIONMaterialReference Part No.ZMT PART NUMBER
      Complete 4EH Pump w/FlangesC.I./316SS T4EH-P-21E1-1-1356SS
      Complete 4EH Pump w/Tri-ClampC.I./316SS T4EH-P-21E4-1-1356SS
      Impeller316SS4EH-100-05A-316T4EH-100-05A-316
      Casing316SS4EH-141A-01-316SST4EH-141A-01-316
      Shaft17-4 PH4EH-105-07B-316LT4EH-105-07B-316L
      Stuffing Box316SS4EH-141-51A-316LT4EH-141A-51-316
      Bearing Seal CompleteBuna/316SS4EH-105-72AT4EH-105-72A
      Bearing Oil Seal OnlyBuna T4EH-105-72OS
      Locknut-Impeller316SS4EH-100-56A-316T4EH-100-56A-316
      Locknut-Stuffing Box316SS4EH-141-48-ST4EH-141-48-S
      Cap Seal316SS4EH-141-103-ST4EH-141-103-S
      Locknut-Casing316SS4EH-106-46-ST4EH-106-46-S
      Retainer316SS4EH-105-30T4EH-105-30
      Case GasketEPDM4EH-100-20T4EH-100-20
      Stuffing Box GasketC.N.A.4EH-106-79T4EH-106-79
      Packing – EPREPDM4EH-141-78T4EH-141-78
      Bearing Shim – .005316SS4EH-143A-139-005T4EH-143A-139-005
      Bearing Shim – .010316SS4EH-143A-139-010T4EH-143A-139-010
      Impeller Shim – .005316SS4EH-133-005T4EH-133-005-S
      Impeller Shim – .010316SS4EH-133-010T4EH-133-010-S
      Pump Parts List – Tri-Clover®  3EH Centrifugal Pump
      DESCRIPTIONMaterialReference Part No.ZMT PART NUMBER
      Complete 3EH Pump w/FlangesC.I./316SS T3EH-P-21E1-1-1125SS
      Complete 3EH Pump w/Tri-ClampC.I./316SS T3EH-P-21E4-1-1125SS
      Impeller316SS3EH-100-05-316T3EH-100-05-316
      Casing316SS3EHM-141A-01-316T3EH-141A-01-316
      Shaft17-4 PH2-1/2EH-105-07B-316T3EH-105-07B-316
      Stuffing Box316SS2-1/2EH-141-51-316T3EH-141-51-316
      Bearing Seal CompleteBuna/316SS2-1/2EH-105-72AT3EH-105-72A
      Bearing Oil Seal OnlyBuna T3EH-105-72OS
      Locknut-Impeller316SS2-1/2EH-153A-24-316T3EH-153A-24-316
      Locknut-Stuffing Box316SS2-1/2EH-141-48-ST3EH-141-48-S
      Cap Seal316SS2-1/2EH-141-103-ST3EH-141-103-S
      Locknut-Casing316SS2-1/2EH-106-46-ST3EH-106-46-S
      Retainer316SS2-1/2EH-106-30T3EH-106-30
      Case GasketEPDM3EH-100-20T3EH-100-20
      Stuffing Box GasketC.N.A.2-1/2EH-141-79T3EH-141-79
      Packing – EPREPDM2-1/2EH-141-78T3EH-141-78
      Bearing Shim – .005316SS2-1/2EH-143A-139-005T3EH-143A-139-005
      Bearing Shim – .010316SS2-1/2EH-143A-139-010T3EH-143A-139-010
      Impeller Shim – .005316SSSP328-133-005T3EH-133-005-S
      Impeller Shim – .010316SSSP328-133-010T3EH-133-010-S
      Pin304SS2EJ105-52-ST3EH-2EJ105-52-S
      Eye Bolt304SS2-1/2EH-143-A21-ST3EH-143-A21-S
      Nut-Casing316SSR60-2-86B-ST3EH-R60-2-86B-S
      Key – Impeller304SS2BEH-100-06-316T3EH-100-06-316
      Pump Parts List – Tri-Clover®  4EH Centrifugal Pump
      DESCRIPTIONMaterialReference Part No.ZMT PART NUMBER
      Complete 4EH Pump w/FlangesC.I./316SS T4EH-P-21E1-1-1356SS
      Complete 4EH Pump w/Tri-ClampC.I./316SS T4EH-P-21E4-1-1356SS
      Impeller316SS4EH-100-05A-316T4EH-100-05A-316
      Casing316SS4EH-141A-01-316SST4EH-141A-01-316
      Shaft17-4 PH4EH-105-07B-316LT4EH-105-07B-316L
      Stuffing Box316SS4EH-141-51A-316LT4EH-141A-51-316
      Bearing Seal CompleteBuna/316SS4EH-105-72AT4EH-105-72A
      Bearing Oil Seal OnlyBuna T4EH-105-72OS
      Locknut-Impeller316SS4EH-100-56A-316T4EH-100-56A-316
      Locknut-Stuffing Box316SS4EH-141-48-ST4EH-141-48-S
      Cap Seal316SS4EH-141-103-ST4EH-141-103-S
      Locknut-Casing316SS4EH-106-46-ST4EH-106-46-S
      Retainer316SS4EH-105-30T4EH-105-30
      Case GasketEPDM4EH-100-20T4EH-100-20
      Stuffing Box GasketC.N.A.4EH-106-79T4EH-106-79
      Packing – EPREPDM4EH-141-78T4EH-141-78
      Bearing Shim – .005316SS4EH-143A-139-005T4EH-143A-139-005
      Bearing Shim – .010316SS4EH-143A-139-010T4EH-143A-139-010
      Impeller Shim – .005316SS4EH-133-005T4EH-133-005-S
      Impeller Shim – .010316SS4EH-133-010T4EH-133-010-S

      PUMP CUSTOMIZATION

      Many performance upgrades are offered for Tri-Clover® Pumps:

      • Oil Bath Conversion – Convert pump bearing housing to oil lube, instead of grease lube. This improves bearing life, which provides better pump wear and improved reliability.
      • ZMT Seal Conversion – Convert pump seals to the flushless, a more rugged ZMT engineered seal.
      • Wearbility Upgrade – Convert pump to a hardened body with a hardened impeller for up to 4 times better life.

      DOWNLOADS

      Literature

      AC/AC+ Series Pump LiteratureSanitary Pump Line Literature

      Information

      AC/AC+ Series Pump ManualAC/AC+ Series Pump VideoAC/AC+ Series Pump Parts ListZMT (Tri-Clover® ) EH Parts ListZMT 3EH Parts DiagramZMT 4EH Parts Diagram

      Discover High Quality, Cost-Effective, Innovative Solutions at ZM Technologies!

      REQUEST MORE INFORMATION

      Contact Info

      • 1010 Shaw Road, Stockton, CA 95215
      • (209) 547-1965

      Information

      My account

      About Us

      ZM Technologies has developed a well-earned reputation as an innovation leader in Sanitary Pumps, Mechanical Seals, Seal Repair., and Gaskets... Learn more

      Copyright © 2024 ZMTech. All rights reserved.

      Fristam®, Tri-Clover®, Waukesha®, and Wilden® are trademarks of their respective companies. ZM Technologies. is not a representative, nor affiliated with Alfa-Laval, APV, Fristam®, Tri-Clover®, Waukesha®/SPX Flow, Technology, or Wilden®

      Resource Links

      ZMT Product Lines

      Parts & Services

      Contact Info

      ZM Technologies
      1010 N. Shaw Road
      Stockton, CA 95215
      Office: 209-547-1965
      Fax: 209-464-8140

      RESOURCE LINKS
