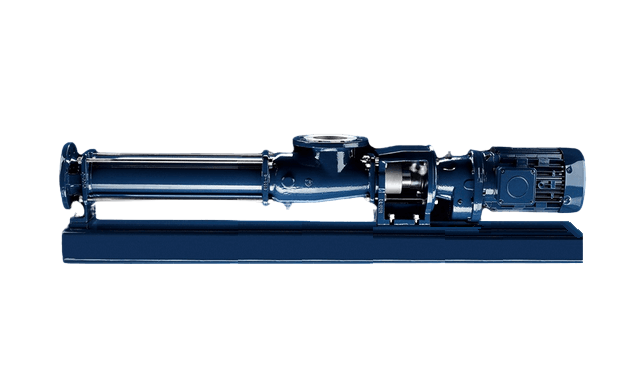

N SERIES PROGRESSIVE CAVITY PUMP
THIS PROGRESSIVE CAVITY INDUSTRIAL PUMP OFFERS:
- Various rotor/stator geometries (conventional, 6L and Tricam geometry).
- Low pulsation with uniform flow.
- High self-priming capabilities even with a mixture of liquid and air or gas up to a 27 foot water column.
- Numerous installation options available.
- Non-Clogging large spherical entrance port.
- Reversible rotation and flow.
N SERIES PERFORMANCE OVERVIEW
Models: 3 Available
Max Outlet Pressure: 1,400 PSI / 96 BAR
Max Flow Rate: 2,200 GPM / 500 Mᵌ/hr
Max Viscosity: 1,200 cP
Seal Specifications: Various Seal Options
PUMP SIZE RANGES

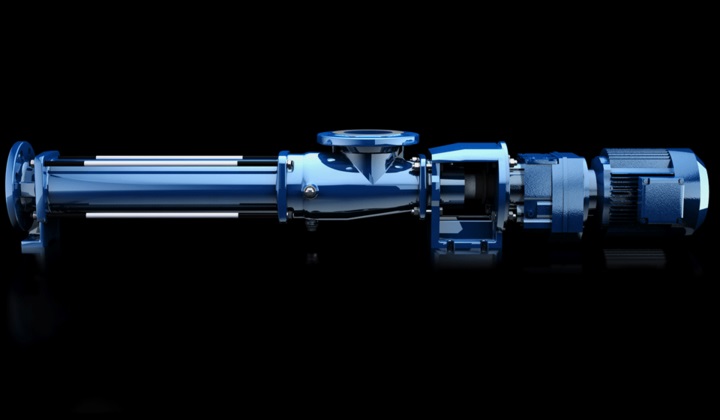

BN RANGE
FOR LOW TO HIGH VISCOUS MEDIA WITH OR WITHOUT SOLIDS
- Conveying capacity: 0.132 GPM – 2,200 GPM (30 l/h – 500 m³/h).
- Pressure: up to 700 PSI (48 bar).
- Short, compact design with directly flange-mounted drive (block type).
- Enhanced combination options: block design available in all sizes and pressure stages.
BENEFITS
- Low-cost due to the removed bearing frame, flexible coupling and common base plate.
- Easy maintenance due to the plug-in connection between the rotating unit and drive.
- Separate pump bearing omitted.

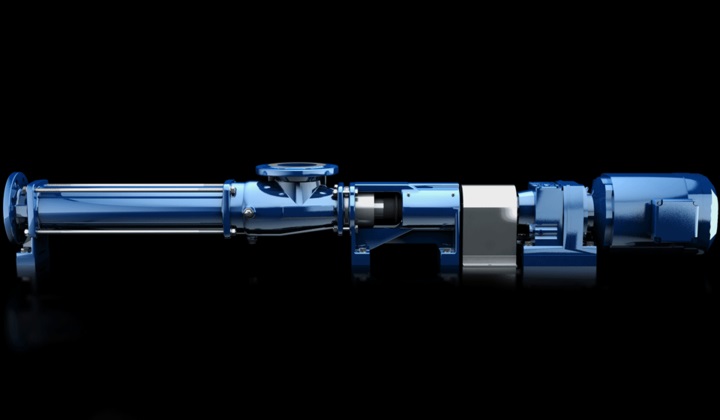

NS RANGE
FOR LOW TO HIGH VISCOUS MEDIA WITH OR WITHOUT SOLIDS
- Conveying capacity: 0.132 GPM – 2,200 GPM (30 l/h – 500 m³/h).
- Pressure: up to 700 PSI (48 bar).
- Universal drive configuration through a flexible coupling or V-belt
- Drive casing and free bare shaft included
- Drive shaft mounted in tapered roller bearings that can be relubricated
BENEFITS
- Easy maintenance due to the plug-in connection
- Easy to replace worn parts without dismantling the bearing unit

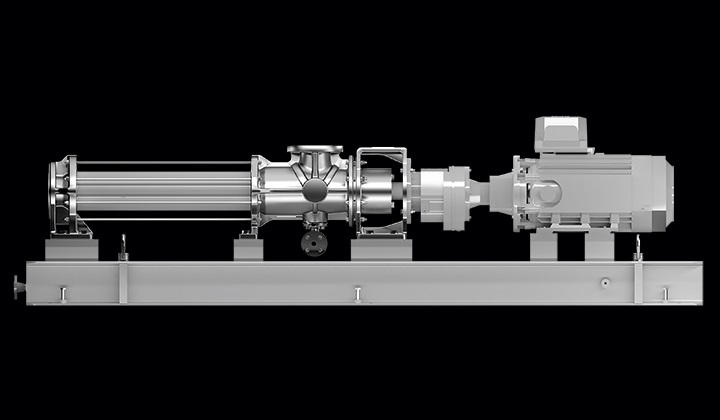

BNA RANGE
FOR LOW TO HIGH VISCOUS MEDIA WITH OR WITHOUT SOLIDS
SEEPEX progressive cavity pumps from the BNA range are designed to fulfill the exacting requirements of the Oil & Gas Industry and meet American Petroleum Institute (API) standards. BNA range pumps have rugged, heavy-duty castings in accordance with API 676 3rd Edition and casing parts made of super duplex stainless steel. The maximum containment pressure for both suction and discharge is 725 PSI (50 bar). The flanges are according to ASME B16.5 – suitable for two times the external forces and moments required by API 676.
Additionally, SEEPEX offers fully API 682 compliant mechanical seals with optimized seal plans. ASTM materials, full traceability and compliance with NACE MR0175 are standard features. The pump can also be designed for gas hazardous areas.
- Conveying capacity: 0.44 GPM–660 GPM (0.1–150 m³/h)
- Working pressure (MAWP): up to 700PSI (48 bar)
- Casing pressure (MACP): up to 725 PSI (50 bar)
BENEFITS
- All process parts are cast or machined – no welding required
- Reduced number of documents and fewer inspections
- API compliant
- Heavy duty design
- Standardized pump components
- Favorable lead time
