      WINE, BEER, & CIP PUMP CARTS

      The Cellar Cart for beer, wine, and CIP is a light weight, robust 2 wheeled cart designed to provide you and your employees with the maximum possible mobility. This cart is constructed of a corrosion free stainless steel frame, solid polypropylene wheels and NEMA 4X VFD.

      These features are just a few of the benefits of our cellar cart.

      • Each versatile cart is built to your specifications and can include any Ampco centrifugal pump, positive displacement pump, or a blender.
      • Carts are ergonomically designed for ease of use in tight spaces.

      The Cellar Cart is available in 2 standard models (other larger pump models are available):

      • CB56 / AC+114  (C-Series) with NEMA 4X VFD
      • CB180 / AC+216 (C-Series) with NEMA 4X VFD

      Options are available for each model, contact our technical sales team today to determine which model is best for your application.

      PUMP CART FEATURES

      • Ampco AC+ Series Pump
      • 316L Stainless Steel Construction
      • 304 Stainless Steel Adapter
      • Dynamically Balanced Impeller
      • 316L Stainless Steel Shaft
      • NEMA 4X VFD
      • Polypropylene Wheels

      PUMP CART PERFORMANCE OVERVIEW

      Models:  2 (Additional Pump Sizes are Available)
      Max Discharge Pressure:  60 PSI / 4 BAR
      Max Flow Rate:  920 GPM / 209 Mᵌ/ hr
      Max Viscosity: 1,200 cP

      Seal Specifications:  4 Seal Options

      beer-and-cip-cart

      Discover High Quality, Cost-Effective, Innovative Solutions at ZM Technologies!

      Wine, Beer & CIP Pump Carts

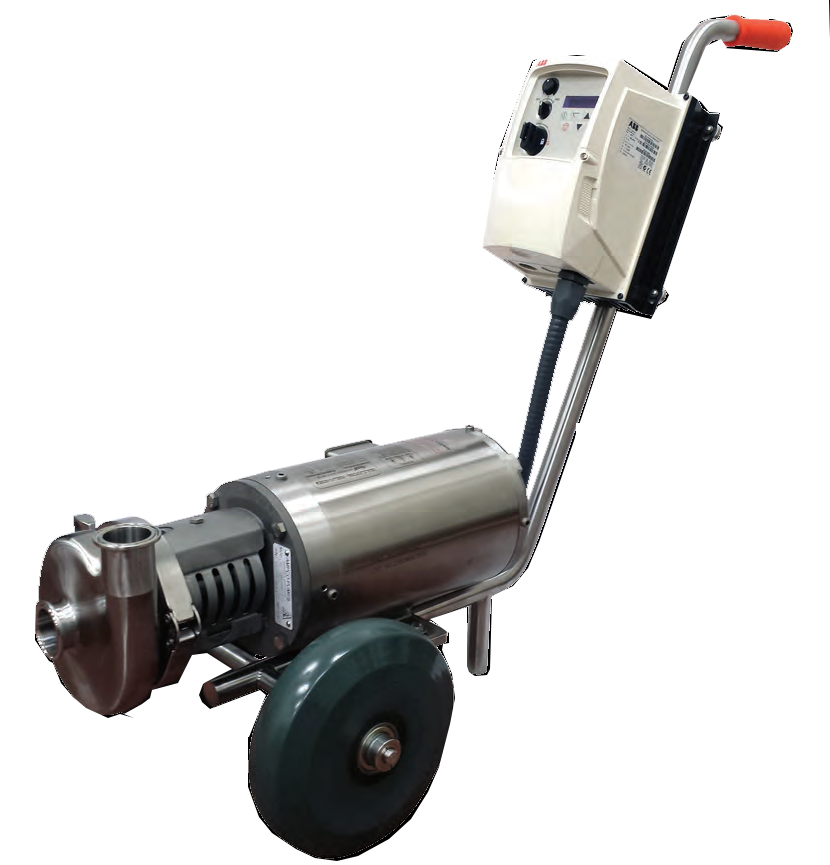

      Model CB56 / AC+ 114 with NEMA 4X VFD. Shown with a stainless steel 1.5 HP 3500 RPM motor.

      Wine & Must Pump Carts

      • Ampco ZP1 Positive Displacement Pump
      • NEMA 4X VFD
      • 304 Stainless Steel Gearcase
      • 316L Stainless Steel Wetted Parts
      • 17-4ph Stainless Steel Shaft
      • 304 Stainless Steel Portable Cart

      Craft Brew Pumps

      • 316L Stainless Steel.
      • 304 Stainless Steel Adapter.
      • Dynamically Balanced Impeller.
      • 316L Stainless Steel Shaft.
      • Internal Seal for longer life.

      Wine, Beer & CIP Pump Carts

      Model CB180 / AC+ 216 with NEMA 4X VFD. Shown with a wash-down 5 HP 3500 RPM motor.
