APV PUMP OEM SEALS
We manufacture and stock many mechanical seals, both ZMT engineered and O.E.M. replicated, for many sanitary centrifugal and positive displacement pumps. ZM Technologies manufactures all of our O.E.M. replica seals to meet or exceed original specifications. These seals are interchangeable with the original and will perform as good as or better than the O.E.M.

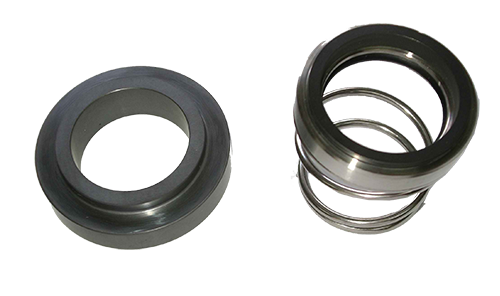

The ZMT APV (SPX Flow) Puma, V2, W+, and W pumps O.E.M replicated seal is made to fit a wide range of APV pump model numbers:

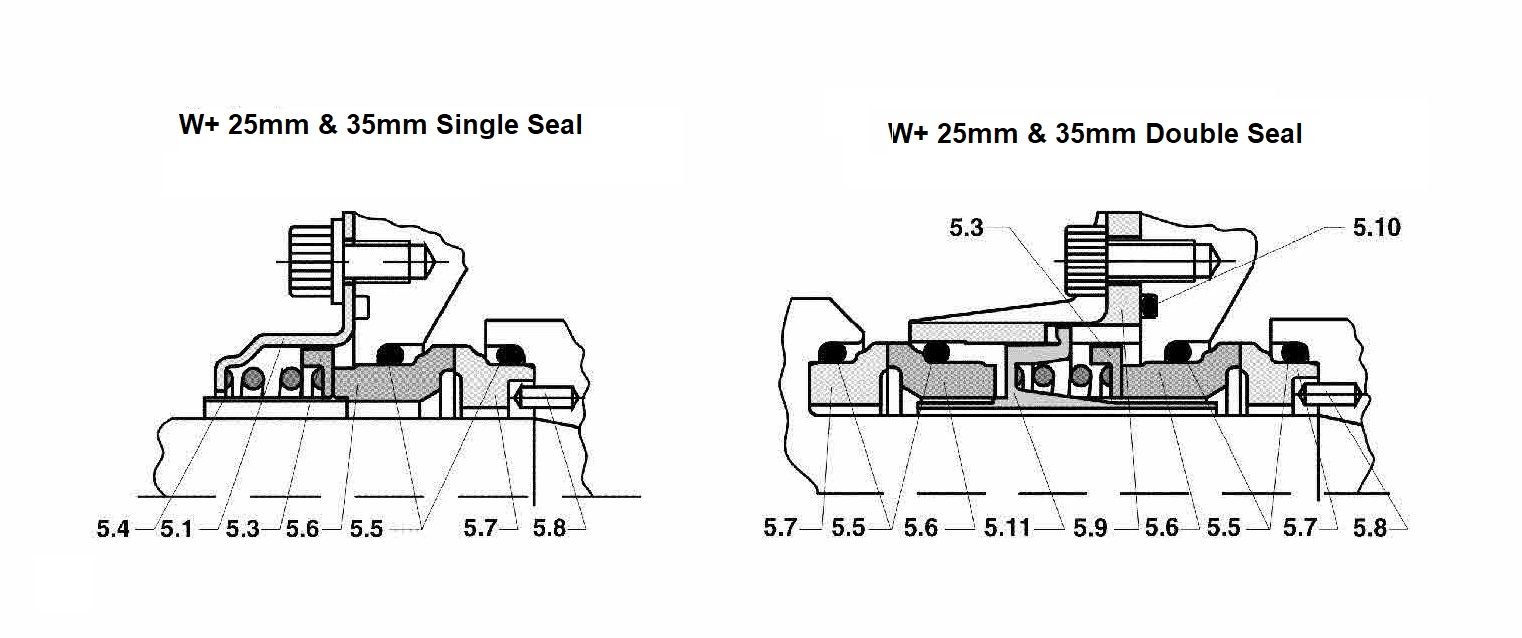

- All 25mm & 35mm W and W+ Single & Double Seals.
- All ZMS 25mm, 48mm, & 54mm Seals, models 3 thru 6.
- All ZM 20mm seals, models ZMA, ZMH, & ZMK.
- All PUMA 1″ & 1-1/2″ Single & Double Seals.
- All V2 pump Models.
All seals are available in a wide range of seal face & O-ring materials.
Contact the factory regarding how ZMT engineered seals can be used in your application.
All seals carry a satisfaction guarantee. See Policy page for details.
- W+ 10/8, 22/20, 30/80, 35/35, 35/55, 50/8, 55/35 Seals
- APV W+ 25/210; 30/120; 30/180; 55/60; 60/110; 65/350, 70/40; 80/80; 110/130 Seals

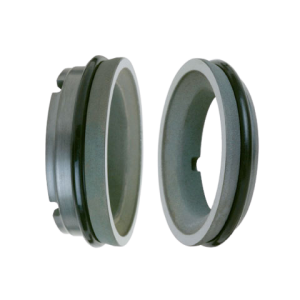

- APV W 20/20; 30/25; 30/50; 40/20; 50/25; 25/75 Seals
- APV W 80/50; 70/30; 50/50; 30/100; 50/100; 60/300; 100/130 Seals
| SEAL LIST – APV W+ 10/8, 22/20; 30/80; 35/35; 35/55; 50/8, 55/35 Centrifugal Pump | |||
|---|---|---|---|
| Description | Material | Ref. Part No. | ZMT Part No. |
| Mechanical Single Seal assembly, 25mm, non-flushed | SiC/CBN/EPDM | 549-P-772461 | AW+025-55-2500E |
| Mechanical Single Seal assembly, 25mm, non-flushed | SiC/CBN/Viton® | 549-P-772462 | AW+025-55-2500V |
| Mechanical Single Seal assembly, 25mm, non-flushed | SiC/SiC/EPDM | 549-P-772463 | AW+025-55-2200E |
| Mechanical Single Seal assembly, 25mm, non-flushed | SiC/SiC/Viton® | 549-P-772464 | AW+025-55-2200V |
| SEAL LIST – APV W+ 25/210; 30/120; 30/180; 55/60; 60/110; 65/350, 70/40; 80/80; 110/130 Centrifugal Pump | |||
|---|---|---|---|
| Description | Material | Ref. Part No. | ZMT Part No. |
| Mechanical Single Seal assembly, 35mm, non-flushed | SiC/CBN/EPDM | 549-P-772466 | AW+035-55-2500E |
| Mechanical Single Seal assembly, 35mm, non-flushed | SiC/CBN/Viton® | 549-P-772467 | AW+035-55-2500V |
| Mechanical Single Seal assembly, 35mm, non-flushed | SiC/SiC/EPDM | 549-P-772468 | AW+035-55-2200E |
| Mechanical Single Seal assembly, 35mm, non-flushed | SiC/SiC/Viton® | 549-P-772469 | AW+035-55-2200V |
| SEAL LIST – APV W 20/20; 30/25; 30/50; 40/20; 50/25; 25/75 Centrifugal Pump | |||
|---|---|---|---|
| Description | Material | Ref. Part No. | ZMT Part No. |
| Mechanical Single Seal assembly, 25mm, non-flushed | SiC/CBN/EPDM | 549-P-179644 | AW025-52-5200E |
| Mechanical Single Seal assembly, 25mm, non-flushed | SiC/CBN/Buna | 549-P-771661 | AW025-52-5200B |
| Mechanical Single Seal assembly, 25mm, non-flushed | SiC/CBN/Viton® | 549-P-179647 | AW025-52-5200V |
| Mechanical Single Seall assembly, 25mm, non-flushed | SiC/SiC/EPDM | 549-P-179645 | AW025-52-2200E |
| Mechanical Single Seal assembly, 25mm, non-flushed | SiC/SiC/Buna | 549-P-771662 | AW025-52-2200B |
| Mechanical Single Seal assembly, 25mm, non-flushed | SiC/SiC/Viton® | 549-P-179648 | AW025-52-2200V |
| Mechanical Double Seal assembly 25mm, flushed | SiC/CBN/EPDM | 549-P-179656 | AW025-52-5252E |
| Mechanical Double Seal assembly, 25mm, flushed | SiC/CBN/Buna | 549-P-771679 | AW025-52-5252B |
| Mechanical Double Seal assembly, 25mm, flushed | SiC/CBN/Viton® | 549-P-179659 | AW025-52-5252V |
| Mechanical Double Seal assembly, 25mm, flushed | SiC/SiC/CBN/EPDM | 549-P-179657 | AW025-52-2252E |
| Mechanical Double Seal assembly, 25mm, flushed | SiC/SiC/CBN/Buna | 549-P-771680 | AW025-52-2252B |
| Mechanical Double Seal assembly, 25mm, flushed | SiC/SiC/CBN/Viton® | 549-P-771660 | AW025-52-2252V |
| SEAL LIST – APV W 80/50; 70/30; 50/50; 30/100; 50/100; 60/300; 100/130 Centrifugal Pump | |||
|---|---|---|---|
| Description | Material | Ref. Part No. | ZMT Part No. |
| Mechanical Single Seal assembly, 35mm, non-flushed | SiC/CBN/EPDM | 549-P-179650 | AW035-52-5200E |
| Mechanical Single Seal assembly, 35mm, non-flushed | SiC/CBN/Buna | 549-P-771670 | AW035-52-5200B |
| Mechanical Single Seal assembly, 35mm, non-flushed | SiC/CBN/Viton® | 549-P-771653 | AW035-52-5200V |
| Mechanical Single Seal assembly, 35mm, non-flushed | SiC/SiC/EPDM | 549-P-179651 | AW035-52-2200E |
| Mechanical Single Seal assembly, 35mm, non-flushed | SiC/SiC/Buna | 549-P-771671 | AW035-52-2200B |
| Mechanical Single Seal assembly, 35mm, non-flushed | SiC/SiC/Viton® | 549-P-771654 | AW035-52-2200V |
| Mechanical Double Seal assembly, 35mm, flushed | SiC/CBN/EPDM | 549-P-179662 | AW035-52-5252E |
| Mechanical Double Seal assembly, 35mm, flushed | SiC/SiC/CBN/EPDM | 549-P-179663 | AW035-52-2252E |
| Mechanical Double Seal assembly, 35mm, flushed | SiC/CBN/Viton® | 549-P-179665 | AW035-52-5252V |
| Mechanical Double Seal assembly, 35mm, flushed | SiC/SiC/CBN/Viton® | 549-P-179666 | AW035-52-2252V |
