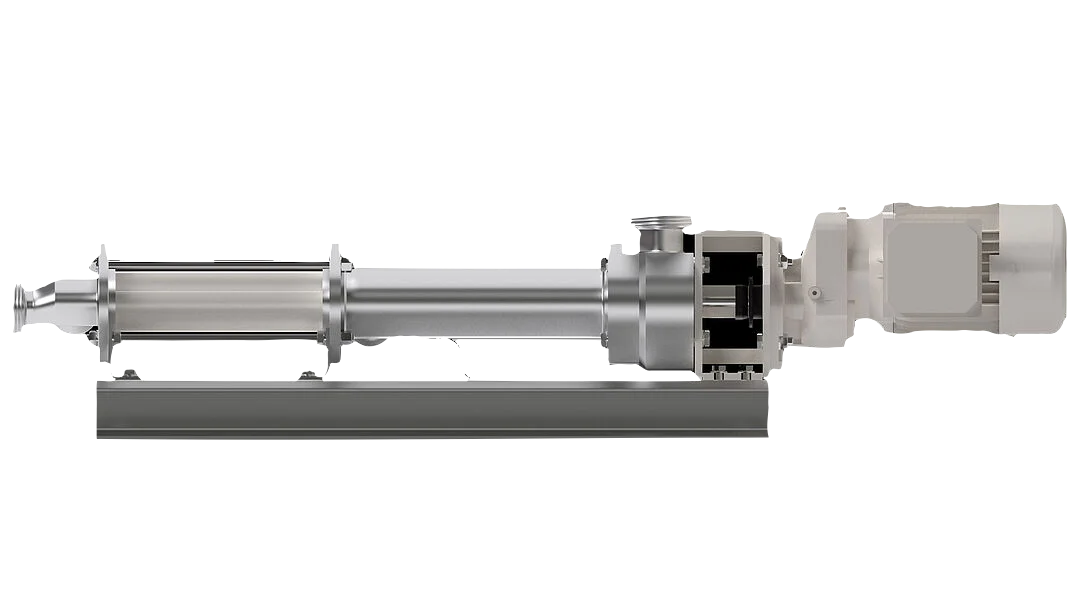

CS SERIES PROGRESSIVE CAVITY PUMP
THIS PROGRESSIVE CAVITY FOOD-GRADE PUMP OFFERS:
- High product safety: stator material and secondary seals are FDA approved.
- CIP (Cleaning-In-Place) with high velocity flow in the suction casing
- Conforms with 3-A Sanitary Standards and EHEDG compliance.
- Particularly easy to maintain due to easy-to-assemble joints along with the plug-in connection between the rotating unit and drive.
CS SERIES PERFORMANCE OVERVIEW
Models: 5 Available
Max Outlet Pressure: 350 PSI / 24 BAR
Max Flow Rate: 572 GPM / 130 Mᵌ/hr
Max Viscosity: 1,200 cP
Seal Specifications: Various Seal Options
PUMP SIZE RANGES
BCFH RANGE
- Joint-free Flexrod design.
- Split suction casing with CFD-optimized inlet geometry.
- Conveying capacity: 0.40 GPM – 280 GPM (90 l/h – 60 m³/h).
- Pressure: 350 psi (up to 24 bar).
- EHEDG Type EL Class I and 3-A Sanitary Standards (USA) certified.
BCF RANGE
- Certified in accordance with 3-A Sanitary Standards and designed for residue-free cleaning (CIP and COP).
- Conveying capacity: 0.40 GPM – 280 GPM (90 l/h – 60 m³/h.)
- Pressure: 350 psi (up to 24 bar).
- Includes the Flexrod, a joint-free flexible titanium shaft.

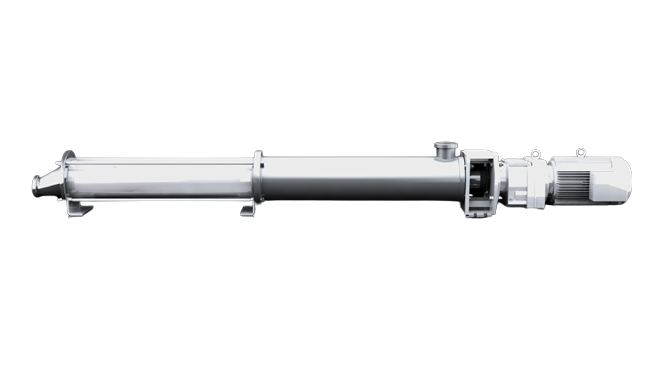

BCSO RANGE
- Meets high hygienic requirements and offers corrosion and wear resistance.
- Conveying capacity: 0.132 GPM – 572 GPM (30 l/h – 130 m³/h).
- Pressure: 350 psi (up to 24 bar).
- Open, aseptic joint ensures residue-free cleaning with CIP.
BCSB RANGE
- For abrasive fluids
- Conveying capacity: 0.132 GPM – 572 GPM (30 l/h – 130 m³/h).
- Pressure: up 350 psi (up to 24 bar).
- Proven, closed and cost-effective pin joint.

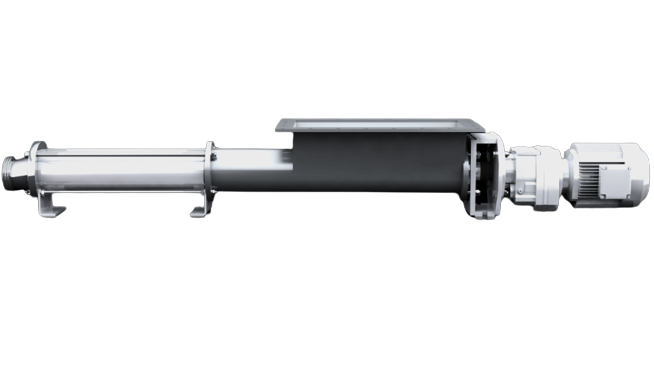

BTCS RANGE
- For highly viscous products with low flowability.
- Conveying capacity: 30 l/h – 130 m³/h (0.132 USGPM – 572 USGPM).
- Pressure: up to 24 bar (350 psi).
- Open hopper pump with cylindrical/conical compression zone and auger feed screw.
