WAUKESHA® U1 & U2 PUMP PARTS

ZM Technologies manufactures and sells many different Centrifugal and Positive Displacement sanitary pumps, like the “C”-Series centrifugal pump (Tri-Clover® type) and the Circumferential Piston PD Pump (Waukesha® type).

WAUKESHA® U1 & U2 PUMP PARTS

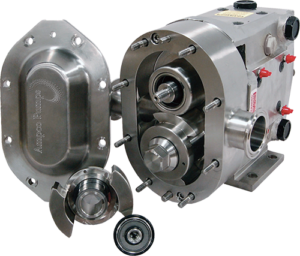

Waukesha® positve displacement pump parts are sold for the U1 & U II pump models, from the 006 to the 523. Parts for the 5000 series of industrial pumps are sold from the 5040 to the 5080 models.

All pump parts are made to exact O.E.M. dimensions and appearance. Parts are in stock and are readily available for immediate delivery.

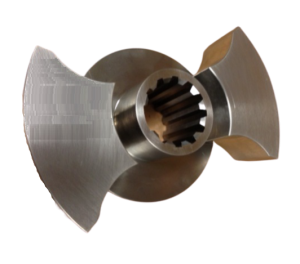

Rotors for U1 & U2 Pumps: Materials offered: W88, 316L,and Nitronic 60.
Shafts for U1 & U2 Pumps: Materials offered: Solid 17-4 PH and 316L.
Rotor Nuts for U1 & U2 Pumps: Material offered: 316L and Nitronic 60.
Cover Wing Nuts for U1 & U2 pumps: Material offered: 316L.
Bearings: Double row tapered roller bearings.
Seal Sleeves for U1 Pumps: Materials offered: 316L and Zirconium.
Mechanical Seals for U1 & U2 Pumps: Materials offered: Solid Silicon-Carbide, Ceramic, and Carbon.
Seal O-Rings for U1 & U2 Pumps: Materials offered: Buna, EPDM,.Silicone, Viton®, and other elastomers

Oil seals, mechanical seals of different configurations, cover O-rings, gears, bearing isolators can all be provided to suit your requirements.

All parts made are guaranteed to be interchangeable with the O.E.M. parts.

U1 006-024 Pump Parts
U1 030-040 Pump Parts
U1 060-134 Pump Parts
U1 220-224 Pump Parts
U1 320-324 Pump Parts
U2 006-018 Pump Parts
U2 030-034 Pump Parts
U2 045-134 Pump Parts
U2 180-224 Pump Parts
U2 210-324 Pump Parts

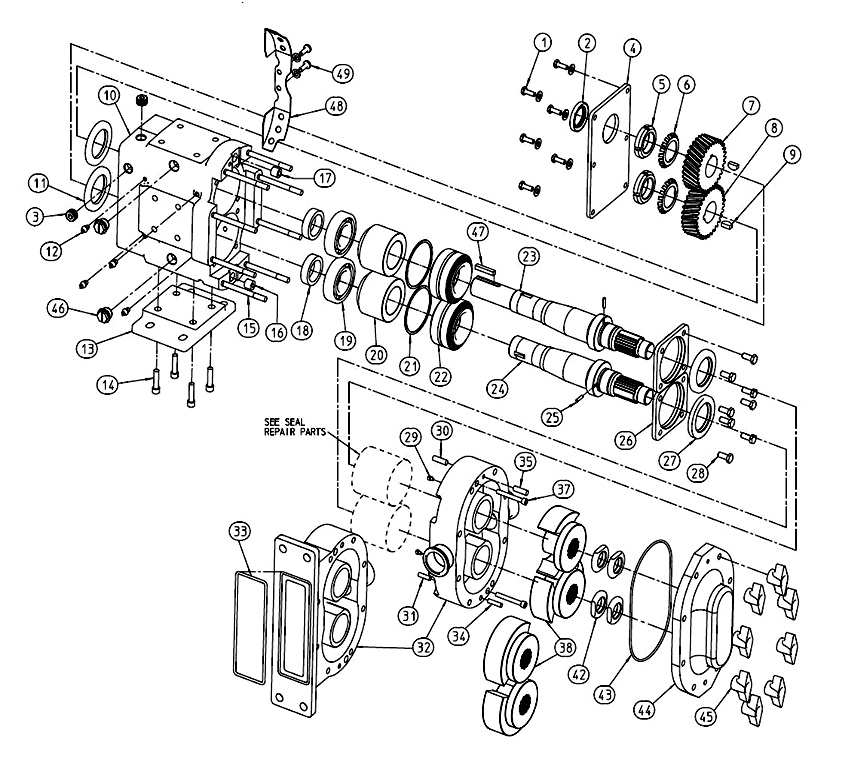

Parts List – ZP1-006, 015, 018, 024
Item	Description	Quantity Per Pump	Ref. No.	ZMT Part No.
1	HH Capscrew, G5Z, GBX Cover, Model 006–024	6	30-287	FHCS25020-075-G5Z
1a	Washer, GBX Cover Capscrew, Model 006–024	6	43-108	FFW250C
2	Oil Seal – Gear Case Cover	1	000030016	W000-030-016
3	Oil Plug 006-018, Gearbox	6	000046002	W000-046-002
4	Gear Case Cover, Steel (includes installed seal)	1	020106000	W020-106-000
4	Gear Case Cover, SS (includes installed seal)	1	102280	W102280
5	Lock Nut – Gear	2	STD236005	WSTD-236-005
6	Lock Washer – Gear	2	STD136005	WSTD-136-005
7	Gear Drive Shaft	1	015007001	W015-007-001
8	Gear Short Shaft	1	015007002	W015-007-002
9	Key, Gear	2	015037000	W015-037-000
10*	Gear Case, CI	1	102276	W102276
10*	Gear Case, SS	1	101831	W101831
11	Oil Seal Rear	2	000030017	W000-030-017
12	Grease Fitting 1/8	8	BD0092000	WBD0-092-000
13*	Mounting Shim (Gear Case Base), CI	1	020110000	W020-110-000
13*	Mounting Shim (Gear Case Base), SS	1	102284	W102284
14	SH Capscrew, G8Z, Mount/Base, Model 006-024	4	30-343	FSHCS31318-100-G8Z
15	Stud	8	AD0011000	WAD0-011-000
	Stud Jacketed Cover	8	AD0011J00	WAD0-011-J00
	Stud	8	018011000	W018-011-000
	Stud Jacketed Cover	8	AD0011100	WAD0-011-100
	Stud	6	018011000	W018-011-000
	Short Stud, Std Cover – 024-U1	2	35547	W35547
	Stud Jacketed Cover	6	AD0011100	WAD0-011-100
	Stud, Jacketed Cover, U1-018	2	35548	W35548
16	Dowel Bushing, Lower	1	AD0116100	WAD0-116-100
17	Dowel Bushing, Upper	1	AD0116000	WAD0-116-000
18	Spacer Gear to Rear Bearing	2	015055000	W015-055-000
19	Rear Bearing	2	015035000	W015-035-000
20*	Spacer Bearing	2	101814	W101814
21*	006 – 024 Shim Kit	2	117889	W117889
22*	Front Bearing	2	101714	W101714
23*	Drive Shaft (316L SS) Model 006, 015 U1 (post 07/2001)	1	114642	W114642
23*	Drive Shaft (316L SS) Model 018 – 024 U1 (post 07/2001)	1	114644	W114644
24*	Idle Shaft (316L SS) Model 006, 015 U1 (post 07/2001)	1	114643	W114643
24*	Idle Shaft (316L SS) Model 018 – 024 U1 (post 07/2001)	1	114645	W114645
25	Drive Pin	2	CD0126000	WCD0-126-000
26*	Bearing Retainer Front	2	120332	W120332
27*	Grease Seal Front Brg Ret	2	121679	W121679
28	BH Capscrew, SS, Brg Ret, Model 006–024	8	30-58	FBHCS25020-075-SS
29	Stop Pin Seal	2	015126000	W015-126-000
30	Dowel Pin, Upper Gear Case Side	1	AD0040R00	WAD0-040-R00
31	Dowel Pin, Lower Gear Case Side	1	AD0040R10	WAD0-040-R10
32	Pump Body – 015 U1	1	—	W015-001-010
	Pump Body – 015 U1		—	W015-001-010
	Pump Body – 018 U1		—	W018-001-010
	Pump Body – 024 U1		—	W024-001-010
33	Flange O-Ring – Buna (Model 024)	1	N70241	WN70241
33	Flange O-Ring – Viton® (Model 024)	1	V70241	WV70241
34	Dowel (lower cover)	1	AD0040100	WAD0-040-100
35	Dowel (upper cover)	1	AD0040000	WAD0-040-000
37	SH Capscrew, SS, Body Retaining, Model 006–015	2	30-523	FSHCS25020-125-SS
37	SH Capscrew, SS, Body Retaining, Model 018–030	2	30-211	FSHCS25020-200-SS
38	Rotor Twin Blade – #W88 Alloy – Model 006 U1	2	006010000	W006-010-000
	Rotor Twin Blade – #W88 Alloy – Model 006 U1 + .040		——-	W006-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 006 U1 + .080		——-	W006-010-000-080
	Rotor Twin Blade – #W88 Alloy – Model 015 U1		015010000	W015-010-000
	Rotor Twin Blade – #W88 Alloy – Model 015 U1 + .040		——-	W015-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 015 U1 + .080		——-	W015-010-000-080
	Rotor Twin Blade – #W88 Alloy – Model 018 – 024 U1		018010000	W018-010-000
38	Rotor Twin Blade – #W88 Alloy – Model 018 – 024 U1 + .040		——-	W018-010-000-040
38	Rotor Twin Blade – #W88 Alloy – Model 018 – 024 U1 + .080		——-	W018-010-000-080
42	Jam Nut	4	AD0052001	WAD0-052-001
43	Cover O-Ring – Buna	1	N70252	WN70252
	Cover O-Ring – Silicone		S75252	WS75252
	Cover O-Ring – Viton®		V70252	WV70252
	Cover O-Ring – EPDM		E70252	WE70252
44	Pump Cover	1	AD0002S00	WAD0-002-S00
44	Pump Cover – Jacketed	1	AD0002J10	WAD0-002-J10
45	Wing Nut	8	105850	W105850
45	Hex Nut	8	108369	W108369
46	Large Cleanout Plug	4	—	W41013
47	Drive Shaft Key, 3/16 X 3/16 X 1 1/8	1	000037001	W000-037-001
*Replacement Waukesha® pump parts manufactured before July 2001, order the following parts.
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
10	Gear Case, CI	1	020005000	W020-005-000
20	Spacer Bearing	2	015055001	W015-055-001
21	006 – 024 Shim Kit	2	117889	W117889
22	Front Bearing	2	015036000	W015-036-000
23	Drive Shaft (316L SS) Model 006, 015 U1 (pre 07/2001)	1	015008000	W015-008-000
24	Idle Shaft (316L SS) Model 006, 015 U1 (pre 07/2001)	1	015009000	W015-009-000
26	Bearing Retainer Front	2	015080000	W015-080-000
27	Grease Seal Front Brg Ret	2	000030018	W000-030-018
*Replacement parts for Waukesha^®pumps manufactured after July 2001 but before 07/12/04, order the following parts.
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
26	Bearing Retainer Front	2	101810	W101810
27	Grease Seal Front Brg Ret	2	101716	W101716
33	Flange O-Ring – Buna (Model 024)*	1	N70245	WN70245
33	Flange O-Ring – Viton® (Model 024)*	1	V70245	WV70245

Parts List – ZP1-030, 034
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Pump Part No.
1	HH Capscrew, G5Z, GBX Cover, Model 030-034	6	30-283	FHCS31318-075-G5Z
1a	Washer, GBX Cover Capscrew, Model 030-034	6	43-194	FFW313C
2	Oil Seal – Gear Case Cover	1	000030013	W000-030-013
3	Oil Plug 030-523, Gearbox	6	000046004	W000-046-004
4	Gear Case Cover, Steel (includes installed seal)	1	040106000	W040-106-000
4	Gear Case Cover, SS (includes installed seal)	1	102281	W102281
5	Lock Nut – Gear	2	CD0036N00	WCD0-036-N00
6	Lock Washer – Gear	2	CD0036W00	WCD0-036-W00
7	Gear Drive Shaft	1	030007001	W030-007-001
8	Gear Short Shaft	1	030007002	W030-007-002
9	Key, Gear	2	015037000	W015-037-000
10*	Gear Case, CI	1	102276	W102276
10*	Gear Case, SS	1	101833	W101833
11	Oil Seal Rear	2	000030017	W000-030-017
12	Grease Fitting 1/8	8	BD0092000	WBD0-092-000
13	Mounting Shim (Gear Case Base), CI	1	040110000	W040-110-000
13	Mounting Shim (Gear Case Base), SS	1	102285	W102285
14	SH Capscrew, G8Z, Mount/Base, Model 030-034	4	30-344	FSHCS37516-100-G8Z
15	Stud	8	108842	W108842
	Stud Jacketed Cover	8	108845	W108845
	Stud	6	108842	W108842
	Stud, Short, U1-034	2	35555	W35555
	Stud Jacketed Cover	6	108845	W108845
	Stud, Short, Jacketed Cover, U1-034	2	35549	W35549
16	Dowel Pin, Lower Cover Side	1	BD0040100	WBD0-040-100
17	Dowel Pin, Upper Cover Side	1	BD0040000	WBD0-040-000
18	Spacer Gear to Rear Bearing	2	030055000	W030-055-000
19	Rear Bearing	2	030035000	W030-035-000
20*	Spacer Bearing	2	101815	W101815
21	030 – 034 Shim Kit	2	—————–	W117890
22*	Front Bearing	2	030036000	W030-036-000
23*	Drive Shaft (17-4PH) Model 030, 034 U1 (post 07/2001)	1	114779	W114779
24*	Idle Shaft (17-4PH) Model 030, 034 U1 (post 07/2001)	1	114780	W114780
25	Drive Pin	2	CD0126000	WCD0-126-000
26*	Bearing Retainer Front	2	120333	W120333
27*	Grease Seal Front Brg Ret	2	121680	W121680
28	BH Capscrew, SS, Brg Ret, Model 030-034	8	30-29	FBHCS31318-075-SS
29	Stop Pin Seal	2	030126000	W030-126-000
30	Dowel Pin, Upper Gear Case Side	1	BD0040200	WBD0-040-200
31	Dowel Pin, Lower Gear Case Side	1	BD0040300	WBD0-040-300
32	Rotor Twin Blade – #W88 Alloy – Model 030 U1	1	030010000	W030-010-000
	Rotor Twin Blade – #W88 Alloy – Model 030 U1 + .040		——-	W030-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 030 U1 + .080		——-	W030-010-000-080
	Single Blade Rotor – #W88 Alloy – 90° – 030 U1		117291	W117291
33	Rectangular Flange O-Ring – Buna	1	N70357	WN70357
34	Dowel Pin, Upper Cover Side	1	BD0040000	WBD0-040-000
35	Dowel Pin, Lower Cover Side	1	BD0040100	WBD0-040-100
37	SH Capscrew, SS, Body Retaining, Model 018–030	2	30-211	FSHCS25020-200-SS
38	Rotor Twin Blade – #W88 Alloy – Model 030 U1	2	030010000	W030-010-000
38	Single Blade Rotor – #W88 Alloy – 90° – 030 U1	1	117291	W117291
42	Jam Nut	4	BD0052001	WBD0-052-001
43	Cover O-Ring – Buna	1	N70261	WN70261
	Cover O-Ring – EPDM		E70261	WE70261
	Cover O-Ring – Viton®		V70261	WV70261
	Cover O-Ring – Silicone		S75261	WS75261
44	Pump Cover	1	BD0002S00	WBD0-002-S00
44	Pump Cover – Jacketed	1	BD0002J10	WBD0-002-J10
45	Wing Nut	8	105851	W105851
45	Hex Nut	8	108370	W108370
46	Large Cleanout Plug	4	—	W41013
47	Drive Shaft Key, 1/4 X 1/4 X 1 3/4	1	000037002	W000-037-002
*Replacement parts for Waukesha^®pumps manufactured before July 2001, order the following parts.
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
10	Gear Case, CI	1	040005000	W040-005-000
20	Spacer Bearing	2	030055001	W030-055-001
22	Front Bearing	2	030036000	W030-036-000
23	Drive Shaft (17-4PH) Model 030, 034 U1 (pre 07/2001)	1	35341 / 030008000	W030-008-000
24	Idle Shaft (17-4PH) Model 030, 034 U1 (pre 07/2001)	1	35342 / 030009000	W030-009-000
26	Bearing Retainer Front	2	030080000	W030-080-000
27	Grease Seal Front Brg Ret	2	000030015	W000-030-015
*Replacement parts for Waukesha^®pumps manufactured after July 2001 but before 07/12/04, order the following parts.
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
26	Bearing Retainer Front	2	101811	W101811
27	Grease Seal Front Brg Ret	2	101717	W101717

Parts List – ZP1-060 – 134
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
1	HH Capscrew, G5Z, GBX Cover, Model 060–324	6	30-314	FHCS37516-075-G5Z
1a	Washer, GBX Cover Capscrew, Model 060–324	6	43-189	FFW375C
2	Oil Seal – Gear Case Cover	1	000030012	W000-030-012
3	Oil Plug 030-523, Gearbox	6	000046004	W000-046-004
4	Gear Case Cover, Steel (includes installed seal)	1	070106000	W070-106-000
4	Gear Case Cover, SS (includes installed seal)	1	102282	W102282
5	Lock Nut – Gear	2	STD236009	WSTD-236-009
6	Lock Washer – Gear	2	STD136009	WSTD-136-009
7	Gear Drive Shaft	1	060007001	W060-007-001
8	Gear Short Shaft	1	060007002	W060-007-002
9	Key, Gear	2	060037000	W060-037-000
10	Gear Case, CI	1	070005000	W070-005-000
10	Gear Case, SS	1	101834	W101834
11	Oil Seal Rear	2	000030011	W000-030-011
12	Grease Fitting 1/8	8	BD0092000	WBD0-092-000
13	Mounting Shim (Gear Case Base), CI	1	070110000	W070-110-000
13	Mounting Shim (Gear Case Base), SS	1	102286	W102286
14	SH Capscrew, SS, Body Retaining, Model 018–030	4	30-211	FSHCS25020-200-SS
15	Stud	8	108843	W108843
	Stud	6	108843	W108843
	Stud, Short, U1-064	2	0C1050000	W0C1-050-000
	Stud Jacketed Cover	8	108846	W108846
	Stud Jacketed Cover	6	108846	W108846
	Stud, Short, Jacketed, U1-064	2	35556	W35556
	Stud	8	130011000	W130-011-000
	Stud	6	130011000	W130-011-000
	Stud, Short, U1-064	2	0C1050000	W0C1-050-000
	Stud Jacketed Cover	8	130011001	W130-011-001
	Stud Jacketed Cover	6	130011001	W130-011-001
	Stud, Short, Jacketed, U1-064	2	35556	W35556
16	Dowel Bushing, Lower	1	CD0116100	WCD0-116-100
17	Dowel Bushing, Upper	1	CD0116000	WCD0-116-000
21	045 – 134 Shim Kit	2	117891	W117891
18	Spacer Gear to Rear Bearing	2	107187	W107187
19	Rear Bearing	2	107186	W107186
20	Spacer Bearing	2	060055003	W060-055-003
22	Front Bearing	2	060036000	W060-036-000
23	Drive Shaft (17-4PH) Model 060, 064 U1	1	35145 / 060008001	W060-008-001
23	Drive Shaft (17-4PH) Model 130, 134 U1	1	35394 / 130008001	W130-008-001
24	Idle Shaft (17-4PH) Model 060, 064 U1	1	35146 / 060009001	W060-009-001
24	Idle Shaft (17-4PH) Model 130, 134 U1	1	35392 / 130009001	W130-009-001
25	Drive Pin	2	CD0126000	WCD0-126-000
26*	Bearing Retainer Front	2	121828	W121828
27	Grease Seal Front Brg Ret	2	000030009	W000-030-009
28	BH Capscrew, SS, Brg Ret, Model 060–324	8	30-60	FBHCS37516-125-SS
29	Stop Pin Seal	2	223126000	W223-126-000
30	Dowel Pin, Upper Gear Case Side	1	CD0040R00	WCD0-040-R00
31	Dowel Pin, Lower Gear Case Side	1	CD0040R10	WCD0-040-R10
32	Pump Body – 060 U1	1	—	W060-001-010
	Pump Body – 064 U1		—	W064-001-010
	Pump Body – 130 U1		—	W130-001-010
	Pump Body – 134 U1		—	W134-001-010
33	Rectangular Flange O-Ring – Buna (Model 064)	1	N70366	WN70366
33	Rectangular Flange O-Ring – Buna (Model 134)	1	N70369	WN70369
35	Dowel Pin, Upper Cover Side	1	CD0040000	WCD0-040-000
34	Dowel Pin, Lower Cover Side	1	CD0040100	WCD0-040-100
37	SH Capscrew, SS, Body Retaining, Model 060-064	2	30-319	FSHCS31318-325-SS
37	SH Capscrew, SS, Body Retaining, Model 130-134	2	30-423	FSHCS31318-400-SS
38	Rotor Twin Blade – #W88 Alloy – Model 060 U1	2	060010000	W060-010-000
	Rotor Twin Blade – #W88 Alloy – Model 060 U1 + .040		——-	W060-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 060 U1 + .080		——-	W060-010-000-080
	Rotor Twin Blade – #W88 Alloy – Model 130 U1		130010000	W130-010-000
	Rotor Twin Blade – #W88 Alloy – Model 130 U1 + .040		——-	W130-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 130 U1 + .080		——-	W130-010-000-080
	Single Blade Rotor – #W88 Alloy – 90° – 060 U1		117343	W117343
	Single Blade Rotor – #W88 Alloy – 90° – 130 U1		117360	W117360
42	Jam Nut	4	060052001	W060-052-001
43	Cover O-Ring – Buna	1	N70272	WN70272
	Cover O-Ring – Silicone		S75272	WS75272
	Cover O-Ring – Viton®		V70272	WV70272
	Cover O-Ring – EPDM		E70272	WE70272
44	Pump Cover	1	CD0002S00	WCD0-002-S00
44	Pump Cover – Jacketed	1	CD0002J10	WCD0-002-J10
45	Wing Nut	8	105852	W105852
45	Hex Nut	8	108371	W108371
46	Large Cleanout Plug	4	—	W41013
47	Drive Shaft Key, 3/8 X 3/8 X 1 5/8	1	000037003	W000-037-003
*When purchasing replacement parts for Waukesha® pumps manufactured before 07/12/04, order the following parts.
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
26	Bearing Retainer Front	2	101812	W101812

Parts List – ZP1-220 – 224
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
1	HH Capscrew, G5Z, GBX Cover, Model 060–324	6	30-314	FHCS37516-075-G5Z
1a	Washer, GBX Cover Capscrew, Model 060–324	6	43-189	FFW375C
2	Oil Seal – Gear Case Cover	1	STD030006	WSTD-030-006
3	Oil Plug 030-523, Gearbox	6	000046004	W000-046-004
4	Gear Case Cover, Steel (includes installed seal)	1	230106000	W230-106-000
5	Lock Nut – Gear	2	STD236011	WSTD-236-011
6	Lock Washer – Gear	2	STD136011	WSTD-136-011
7	Gear Drive Shaft	1	200007001	W200-007-001
8	Gear Short Shaft	1	200007002	W200-007-002
9	Key, Gear	2	200037000	W200-037-000
10	Gear Case, CI	1	230005000	W230-005-000
11	Oil Seal Rear	2	STD119002	WSTD-119-002
12	Grease Fitting 1/8	8	BD0092000	WBD0-092-000
13	Mounting Shim (Gear Case Base), CI	1	230110000	W230-110-000
14	SH Capscrew, G8Z, Mount/Base, Model 220-224	4	30-111	FSHCS50013-200-G8Z
15	Stud	8	108844	W108844
15	Stud	8	108844	W108844
	Stud	6	108844	W108844
	Stud, Short, U1-224	2	35550	W35550
16	Dowel Bushing, Lower	1	CD0116100	WCD0-116-100
17	Dowel Bushing, Upper	1	CD0116000	WCD0-116-000
18	Spacer Gear to Rear Bearing	2	40878	W40878
19	Rear Bearing	2	200035000	W200-035-000
20	Spacer Bearing	2	40752	W40752
21	180 – 224 Shim Kit	2	117892	W117892
22	Front Bearing	2	200036000	W200-036-000
23	Drive Shaft (17-4PH) Model 220, 224 U1	1	35349 / 220008001	W220-008-001
24	Idle Shaft (17-4PH) Model 220, 224 U1	1	35350 / 220009001	W220-009-001
25	Drive Pin	2	CD0126000	WCD0-126-000
26*	Bearing Retainer Front	2	121829	W121829
27	Grease Seal Front Brg Ret	2	121681	W121681
28	BH Capscrew, SS, Brg Ret, Model 060–324	8	30-60	FBHCS37516-125-SS
29	Stop Pin Seal	2	223126000	W223-126-000
30	Dowel Pin, Upper Gear Case Side	1	CD0040R00	WCD0-040-R00
31	Dowel Pin, Lower Gear Case Side	1	CD0040R10	WCD0-040-R10
32	Pump Body – 220 U1	1	—	W220-001-010
32	Pump Body – 224 U1	1	—	W224-001-010
33	Rectangular Flange O-Ring – Buna	1	N70376	WN70376
35	Dowel Pin, Upper Cover Side	1	GD0040000	WGD0-040-000
34	Dowel Pin, Upper Cover Side	1	GD0040000	WGD0-040-000
37	SH Capscrew, SS, Body Retaining, Model 220/380	2	30-499	FSHCS37516-450-SS
38	Rotor Twin Blade – #W88 Alloy – Model 220 U1	2	220010000	W220-010-000
	Rotor Twin Blade – #W88 Alloy – Model 220 U1 + .040		——-	W220-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 220 U1 + .080		——-	W220-010-000-080
	Single Blade Rotor – #W88 Alloy – 90° – 220 U1		117391	W117391
42	Jam Nut	4	GD0052001	WGD0-052-001
43	Cover O-Ring – Silicone	1	GD0117SC0	WGD0-117-SC0
	Cover O-Ring – Buna		GD0117000	WGD0-117-000
	Cover O-Ring – Viton®		GD0117V00	WGD0-117-V00
	Cover O-Ring – EPDM		GD0117002	WGD0-117-002
44	Pump Cover	1	GD0002S00	WGD0-002-S00
45	Wing Nut	8	105853	W105853
45	Hex Nut	8	108372	W108372
46	Large Cleanout Plug	4	—	W41013
47	Drive Shaft Key, 1/2 X 1/2 X 1 7/8	1	000037004	W000-037-004
*When purchasing replacement parts for Waukesha® pumps manufactured before 07/12/04, order the following parts.
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
26	Bearing Retainer Front	2	101813	W101813

Parts List – ZP1-320 – 324
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
1	HH Capscrew, G5Z, GBX Cover, Model 060–324	6	30-314	FHCS37516-075-G5Z
1a	Washer, GBX Cover Capscrew, Model 060–324	6	43-189	FFW375C
2*	Oil Seal – Gear Case Cover	1	STD030006	WSTD-030-006
3	Oil Plug 030-523, Gearbox	6	000046004	W000-046-004
4	Gear Case Cover, Steel (includes installed seal)	1	40669	W40669
5	Lock Nut – Gear	2	105697	W105697
6	Lock Washer – Gear	2	STD136005	WSTD-136-005
7	Gear Drive Shaft	1	102470	W102470
8	Gear Drive Shaft	1	102470	W102470
9	Key, Gear	2	0H1037000	W0H1-037-000
10	Gear Case, CI	1	40616	W40616
11*	Oil Seal Rear	2	102475	W102475
12	Grease Fitting 1/8	8	BD0092000	WBD0-092-000
13	Mounting Shim (Gear Case Base), CI	1	40288	W40288
14	SH Capscrew, G8Z, Mount/Base, Model 320-323	4	30-250	FSHCS50013-175-G8Z
15	Stud, Cover, Long	4	111291	W111291
16	Dowel Bushing, Gearcase	2	0H1116000	W0H1-116-000
18	Spacer Gear to Rear Bearing	2	102474	W102474
19	Rear Bearing	2	0H1036000	W0H1-036-000
20	320 front Bearing Spacer	2	102472	W102472
21	210 – 324 Shim Kit	2	117893	W117893
22	Front Bearing	2	0H1036003	W0H1-036-003
23	Drive Shaft (17-4PH) Model 320, 323, 324 U1	1	113520 / 320008001	W320-008-001
24	Idle Shaft (17-4PH) Model 320, 323, 324 U1	1	113521 / 320009001	W320-009-001
26*	Bearing Retainer Front	2	123533	W123533
27	Grease Seal Front Brg Ret	2	121681	W121681
28	BH Capscrew, SS, Brg Ret, Model 060–324	8	30-60	FBHCS37516-125-SS
29	HH Capscrew, SS, Gland, Model 320-324	8	30-60	FHCS37516-125-SS
29a	Lock Washer, Gland, Model 320-324	8	43-28	FLW-375-SS
30	Seal Gland, No Flush	2	300034003	W300-034-003
30	Seal Gland, W/Flush Holes	2	300034001	W300-034-001
31	Dowel Pin, Gear Case Side	2	—	W320-004-R00
32	Pump Body – 320 U1	1	—	W320-001-010
34	Stud, Cover, Short	4	111292	W111292
35	Dowel Pin, Cover Side	2	—	W320-004-000
37	SH Capscrew, SS, Body Retaining, Model 180/320/323	2	30-323	FSHCS37516-400-SS
38	Rotor Twin Blade – #W88 Alloy – Model 320 U1, 323+ ZD-Evo	2	320010000	W320-010-000
	Rotor Twin Blade – #W88 Alloy – Model 320 U1 + .040		——-	W320-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 320 U1 + .080		——-	W320-010-000-080
	Rotor Twin Blade – #W88 Alloy – Model 323 U1		323010000	W323-010-000
	Rotor Twin Blade – #W88 Alloy – Model 323 U1 + .040		——-	W323-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 323 U1 + .080		——-	W323-010-000-080
42	Pump Cover	4	0H1002002	W0H1-002-002
43	Cover O-Ring – Buna	1	N70280	WN70280
	Cover Gasket O-Ring – Silicone		323117013	W323-117-013
	Cover O-Ring – Viton®		V70280	WV70280
	Cover O-Ring – EPDM		E70280	WE70280
44	Pump Cover	1	0H1002002	W0H1-002-002
45	Wing Nut	8	110858	W110858
45	Hex Nut (optional)	8	108373	W108373
46	Large Cleanout Plug	4	—	W35824
47	Drive Shaft Key, 5/8 X 5/8 X 2 3/4	1	000037005	W000-037-005
*When purchasing replacement parts for Waukesha^®pumps manufactured before July 2001, order the following parts.
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
2	Oil Seal, Gear Case Rear	2	STD119000	WSTD-119-000
*When purchasing replacement parts for Waukesha^®pumps, order the following parts.
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
2	Oil Seal – Gear Case Cover	2	STD030004	WSTD-030-004

Parts List – ZP2-006 – 018
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
1	HH Capscrew, G5Z, GBX Cover, Model 006–024	6	30-287	FHCS25020-075-G5Z
1b	Washer, GBX Cover Capscrew, Model 006–024	6	43-108	FFW250C
2	Oil Seal – Gear Case Cover	1	000030016	W000-030-016
3	Oil Plug 006-018, Gearbox	6	000046002	W000-046-002
4	Gear Case Cover, Steel (includes installed seal)	1	020106000	W020-106-000
4	Gear Case Cover, SS (includes installed seal)	1	102280	W102280
5	Lock Nut – Gear	2	STD236005	WSTD-236-005
6	Lock Washer – Gear	2	STD136005	WSTD-136-005
7	Gear Drive Shaft	1	015007001	W015-007-001
8	Gear Short Shaft	1	015007002	W015-007-002
9	Key, Gear	2	015037000	W015-037-000
10	Gear Case, CI	1	102276	W102276
10	Gear Case, SS	1	101831	W101831
11	Oil Seal Rear	2	000030017	W000-030-017
12	Grease Fitting 1/8	8	BD0092000	WBD0-092-000
13	Mounting Shim (Gear Case Base), CI	1	020110000	W020-110-000
13	Mounting Shim (Gear Case Base), SS	1	102284	W102284
14	SH Capscrew, G8Z, Mount/Base, Model 006-024	4	30-343	FSHCS31318-100-G8Z
15	Stud	8	AD0011000	WAD0-011-000
	Stud Jacketed Cover	8	AD0011J00	WAD0-011-J00
	Stud	8	018011000	W018-011-000
	Stud Jacketed Cover	8	AD0011100	WAD0-011-100
	Stud	6	018011000	W018-011-000
	Short Stud, Std Cover – 024-U1	2	35547	W35547
	Stud Jacketed Cover	6	AD0011100	WAD0-011-100
	Stud, Jacketed Cover, U1-018	2	35548	W35548
16	Dowel Bushing, Lower	1	AD0116100	WAD0-116-100
17	Dowel Bushing, Upper	1	AD0116000	WAD0-116-000
18	Spacer Gear to Rear Bearing	2	015055000	W015-055-000
19	Rear Bearing	2	015035000	W015-035-000
20	Spacer Bearing	2	101814	W101814
21	006 – 024 Shim Kit	2	117889	W117889
22	Front Bearing	2	101714	W101714
23	Drive Shaft (316L SS) Model 006, 015 U2	1	108405	W108405
23	Drive Shaft (316L SS) Model 018 U2	1	108407	W108407
24	Idle Shaft (316L SS) Model 006, 015 U2	1	108406	W108406
24	Idle Shaft (316L SS) Model 018 U2	1	108408	W108408
25	Rotor Key	2	101817	W101817
25	Rotor Key	2	101819	W101819
26*	Bearing Retainer Front	2	120332	W120332
27*	Grease Seal Front Brg Ret	2	121679	W121679
28	BH Capscrew, SS, Brg Ret, Model 006–024	8	30-58	FBHCS25020-075-SS
29	Stop Pin, Seal	6	101718	W101718
30	Dowel Pin, Upper Gear Case Side	1	AD0040R00	WAD0-040-R00
31	Dowel Pin, Lower Gear Case Side	1	AD0040R10	WAD0-040-R10
32	Pump Body – 006 U2	1	—	W006U2-001-010
	Pump Body – 015 U2		—	W015U2-001-010
	Pump Body – 018 U2		—	W018U2-001-010
	Pump Body – 024 U2		—	W024U2-001-010
33	Flange O-Ring – Buna (Model 024)*	1	N70245	WN70245
34	Dowel (lower cover)	1	AD0040100	WAD0-040-100
35	Dowel (upper cover)	1	AD0040000	WAD0-040-000
36	Rotor Hub O-Ring – Buna	2	N70121	WN70121
	Rotor Hub O-Ring – EPDM		E70121	WE70121
	Rotor Hub O-Ring – Viton®		V70121	WV70121
37	SH Capscrew, SS, Body Retaining, Model 006–015	2	30-523	FSHCS25020-125-SS
37	SH Capscrew, SS, Body Retaining, Model 018–030	2	30-211	FSHCS25020-200-SS
38	Rotor Twin Blade – #W88 Alloy – Model 006 U2	2	101870	W006U2-010-000
	Rotor Twin Blade – #W88 Alloy – Model 006 U2 + .040		——-	W006U2-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 006 U2 + .080		——-	W006U2-010-000-080
	Rotor Twin Blade – #W88 Alloy – Model 015 U2		101882	W015U2-010-000
	Rotor Twin Blade – #W88 Alloy – Model 015 U2 + .040		——-	W015U2-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 015 U2 + .080		——-	W015U2-010-000-080
	Rotor Twin Blade – #W88 Alloy – Model 018 U2		101894	W018U2-010-000
	Rotor Twin Blade – #W88 Alloy – Model 018 U2 + .040		——-	W018U2-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 018 U2 + .080		——-	W018U2-010-000-080
39	Rotor Nut O-Ring – Buna	2	N70126	WN70126
	Rotor Nut O-Ring – EPDM		E70126	WE70126
	Rotor Nut O-Ring – Viton®		V70126	WV70126
40	Retainer O-Ring – Buna	2	N70112	WN70112
	Retainer O-Ring – EPDM		E70112	WE70112
	Retainer O-Ring – Viton®		V70112	WV70112
41	Washer, Belleville	2	101691	W101691
42	Rotor Nut	2	101804	W101804
43	Cover O-Ring – Buna	1	N70249	WN70249
	Cover O-Ring – EPDM		E70249	WE70249
	Cover O-Ring – Viton®		V70249	WV70249
44	Pump Cover	1	101842	W101842
44	Pump Cover – Jacketed	1	107664	W107664
45	Hex Nut	8	108369	W108369
45	Wing Nut	8	105850	W105850
46	Large Cleanout Plug	4	—	W35824
47	Drive Shaft Key, 3/16 X 3/16 X 1 1/8	1	000037001	W000-037-001
*When purchasing replacement parts for Waukesha® pumps manufactured before 07/12/04, order the following parts.
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
26	Bearing Retainer Front	2	101810	W101810
27	Grease Seal Front Brg Ret	2	101716	W101716

Parts List – ZP2-030 – 034
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
1	HH Capscrew, G5Z, GBX Cover, Model 030-034	6	30-283	FHCS31318-075-G5Z
1a	Washer, GBX Cover Capscrew, Model 030-034	6	43-194	FFW313C
2	Oil Seal – Gear Case Cover	1	000030013	W000-030-013
3	Oil Plug 030-523, Gearbox	6	000046004	W000-046-004
4	Gear Case Cover, Steel (includes installed seal)	1	040106000	W040-106-000
4	Gear Case Cover, SS (includes installed seal)	1	102281	W102281
5	Lock Nut – Gear	2	CD0036N00	WCD0-036-N00
6	Lock Washer – Gear	2	CD0036W00	WCD0-036-W00
7	Gear Drive Shaft	1	030007001	W030-007-001
8	Gear Short Shaft	1	030007002	W030-007-002
9	Key, Gear	2	BD0037000	WBD0-037-000
10	Gear Case, CI	1	102277	W102277
10	Gear Case, SS	1	101833	W101833
11	Oil Seal Rear	2	000030014	W000-030-014
12	Grease Fitting 1/8	8	BD0092000	WBD0-092-000
13	Mounting Shim (Gear Case Base), CI	1	040110000	W040-110-000
13	Mounting Shim (Gear Case Base), SS	1	102285	W102285
14	SH Capscrew, G8Z, Mount/Base, Model 030-034	4	30-344	FSHCS37516-100-G8Z
15	Stud	8	108842	W108842
	Stud Jacketed Cover	8	108845	W108845
	Stud	6	108842	W108842
	Stud, Short, U1-034	2	35555	W35555
	Stud Jacketed Cover	6	108845	W108845
	Stud, Short, Jacketed Cover, U1-034	2	35549	W35549
16	Dowel Bushing, Lower	1	BD0116100	WBD0-116-100
17	Dowel Bushing, Upper	1	BD0116000	WBD0-116-000
18	Spacer Gear to Rear Bearing	2	030055000	W030-055-000
19	Rear Bearing	2	030035000	W030-035-000
20	Spacer Bearing	2	101815	W101815
21	030 – 034 Shim Kit	2	—————–	W117890
22	Front Bearing	2	101715	W101715
23	Drive Shaft (17-4PH) Model 030, 034 U2	1	108409	W108409
24	Idle Shaft (17-4PH) Model 030 U2	1	108410	W108410
25	Rotor Key	2	101821	W101821
26*	Bearing Retainer Front	2	120333	W120333
27*	Grease Seal Front Brg Ret	2	121680	W121680
28	BH Capscrew, SS, Brg Ret, Model 030-034	8	30-29	FBHCS31318-075-SS
29	Stop Pin, Seal	6	101719	W101719
30	Dowel Pin, Upper Gear Case Side	1	BD0040200	WBD0-040-200
31	Dowel Pin, Lower Gear Case Side	1	BD0040300	WBD0-040-300
32	Pump Body – 030 U2	1	—	W030U2-001-010
32	Pump Body – 034 U2	1	—	W034U2-001-010
33	Rectangular Flange O-Ring – Buna	1	N70357	WN70357
34	Dowel Pin, Lower Cover Side	1	BD0040100	WBD0-040-100
35	Dowel Pin, Upper Cover Side	1	BD0040000	WBD0-040-000
36	Rotor Hub O-Ring – Buna	2	N70127	WN70127
	Rotor Hub O-Ring – EPDM		E70127	WE70127
	Rotor Hub O-Ring – Viton®		V70127	WV70127
37	SH Capscrew, SS, Body Retaining, Model 018–030	2	30-211	FSHCS25020-200-SS
38	Rotor Twin Blade – #W88 Alloy – Model 030 U2	2	102151	W030U2-010-000
	Rotor Twin Blade – #W88 Alloy – Model 030 U2 + .040		——-	W030U2-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 030 U2 + .080		——-	W030U2-010-000-080
	Single Blade Rotor – #W88 Alloy – 45° – 030 U2		117084	W117084
39	Rotor Nut O-Ring – Buna	2	N70130	WN70130
	Rotor Nut O-Ring – EPDM		E70130	WE70130
	Rotor Nut O-Ring – Viton®		V70130	WV70130
40	Retainer O-Ring – Buna	2	N70115	WN70115
	Retainer O-Ring – EPDM		E70115	WE70115
	Retainer O-Ring – Viton®		V70115	WV70115
41	Washer, Belleville	2	101692	W101692
42	Rotor Nut	2	101805	W101805
43	Cover O-Ring – Buna	1	N70259	WN70259
	Cover O-Ring – EPDM		E70259	WE70259
	Cover O-Ring – Viton®		V70259	WV70259
44	Pump Cover	1	101845	W101845
44	Pump Cover – Jacketed	1	107666	W107666
45	Hex Nut	8	108370	W108370
45	Wing Nut	8	105851	W105851
46	Large Cleanout Plug	4	—	W41013
47	Drive Shaft Key, 1/4 X 1/4 X 1 3/4	1	000037002	W000-037-002
*When purchasing replacement parts for Waukesha® pumps manufactured before 07/12/04, order the following parts.
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
26	Bearing Retainer Front	2	101811	W101811
27	Grease Seal Front Brg Ret	2	101717	W101717

Parts List – ZP2-045 – 134
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
1	SH Capscrew, SS, Body Retaining, Model 018–030	6	30-211	FSHCS25020-200-SS
1a	Washer, GBX Cover Capscrew, Model 060–324	6	43-189	FFW375C
2	Oil Seal – Gear Case Cover	1	000030012	W000-030-012
3	Oil Plug 030-523, Gearbox	6	000046004	W000-046-004
4	Gear Case Cover, Steel (includes installed seal)	1	070106000	W070-106-000
4	Gear Case Cover, SS (includes installed seal)	1	102282	W102282
5	Lock Nut – Gear	2	STD236009	WSTD-236-009
6	Lock Washer – Gear	2	STD136009	WSTD-136-009
7	Gear Drive Shaft	1	060007001	W060-007-001
8	Gear Short Shaft	1	060007002	W060-007-002
9	Key, Gear	2	060037000	W060-037-000
10	Gear Case, CI	1	070005000	W070-005-000
10	Gear Case, SS	1	101834	W101834
11	Oil Seal Rear	2	000030011	W000-030-011
12	Grease Fitting 1/8	8	BD0092000	WBD0-092-000
13	Mounting Shim (Gear Case Base), CI	1	070110000	W070-110-000
13	Mounting Shim (Gear Case Base), SS	1	102286	W102286
14	SH Capscrew, G8Z, Mount/Base, Model 220-224	4	30-111	FSHCS50013-200-G8Z
15	Stud, U2	8	107242	W107242
	Stud Jacketed Cover	8	108845	W108845
	Stud	8	108843	W108843
	Stud Jacketed Cover	8	108846	W108846
	Stud	8	130011000	W130-011-000
	Stud Jacketed Cover	8	130011001	W130-011-001
	Stud	6	108843	W108843
	Stud, Short, U1-064	2	0C1050000	W0C1-050-000
	Stud Jacketed Cover	6	108846	W108846
	Stud, Short, Jacketed, U1-064	2	35556	W35556
	Stud	6	130011000	W130-011-000
	Stud, Short, U1-064	2	0C1050000	W0C1-050-000
	Stud Jacketed Cover	6	130011001	W130-011-001
	Stud, Short, Jacketed, U1-064	2	35556	W35556
16	Dowel Bushing, Lower	1	CD0116100	WCD0-116-100
17	Dowel Bushing, Upper	1	CD0116000	WCD0-116-000
18	Spacer Gear to Rear Bearing	2	107187	W107187
19	Rear Bearing	2	107186	W107186
20	Spacer Bearing	2	060055003	W060-055-003
21	045 – 134 Shim Kit	2	117891	W117891
22	Front Bearing	2	060036000	W060-036-000
23	Drive Shaft (17-4PH) Model 045 U2	1	110021	W110021
	Drive Shaft (17-4PH) Model 060, 064 U2		108411	W108411
	Drive Shaft (17-4PH) Model 130, 134 U2		108413	W108413
24	Idle Shaft (17-4PH) Model 045 U2	1	110022	W110022
	Idle Shaft (17-4PH) Model 060, 064 U2		108412	W108412
	Idle Shaft (17-4PH) Model 130, 134 U2		108414	W108414
25	Rotor Key	2	110926	W110926
	Rotor Key		101823	W101823
	Rotor Key		101825	W101825
26*	Bearing Retainer Front	2	121828	W121828
27	Grease Seal Front Brg Ret	2	101829	W101829
28	BH Capscrew, SS, Brg Ret, Model 060–324	8	30-60	FBHCS37516-125-SS
29	Stop Pin, Seal	6	101720	W101720
30	Dowel Pin, Upper Gear Case Side	1	CD0040R00	WCD0-040-R00
31	Dowel Pin, Lower Gear Case Side	1	CD0040R10	WCD0-040-R10
32	Pump Body – 045 U2	1	—	W045U2-001-010
	Pump Body – 060 U2		—	W060U2-001-010
	Pump Body – 130 U2		—	W130U2-001-010
	Pump Body – 134 U2		—	W134U2-001-010
33	Rectangular Flange O-Ring – Buna (Model 064)	1	N70366	WN70366
33	Rectangular Flange O-Ring – Buna (Model 134)	1	N70369	WN70369
34	Dowel Pin, Lower Cover Side	1	CD0040100	WCD0-040-100
35	Dowel Pin, Upper Cover Side	1	CD0040000	WCD0-040-000
37	SH Capscrew, SS, Body Retaining, Model 045 U2	2	30-615	FSHCS31318-250-SS
	SH Capscrew, SS, Body Retaining, Model 060-064		30-319	FSHCS31318-325-SS
	SH Capscrew, SS, Body Retaining, Model 130-134		30-423	FSHCS31318-400-SS
36	Rotor Hub O-Ring – Buna	2	N70224	WN70224
	Rotor Hub O-Ring – EPDM		E70224	WE70224
	Rotor Hub O-Ring – Viton®		V70224	WV70224
	Rotor Twin Blade – #W88 Alloy – Model 045 U2	2	107252	W045U2-010-000
38	Rotor Twin Blade – #W88 Alloy – Model 045 U2 + .040		——-	W045U2-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 045 U2 + .040		——-	W045U2-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 060 U2		102163	W060U2-010-000
	Rotor Twin Blade – #W88 Alloy – Model 060 U2 + .040		——-	W060U2-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 060 U2 + .080		——-	W060U2-010-000-080
	Rotor Twin Blade – #W88 Alloy – Model 130 U2		102175	W130U2-010-000
	Rotor Twin Blade – #W88 Alloy – Model 130 U2 + .040		——-	W130U2-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 130 U2 + .040		——-	W130U2-010-000-040
	Single Blade Rotor – #W88 Alloy – 45° – 060 U2		117117	W117117
	Single Blade Rotor – #W88 Alloy – 45° – 130 U2		117129	W117129
39	Rotor Nut O-Ring – Buna	2	N70227	WN70227
	Rotor Nut O-Ring – EPDM		E70227	WE70227
	Rotor Nut O-Ring – Viton®		V70227	WV70227
40	Retainer O-Ring – Buna	2	N70119	WN70119
	Retainer O-Ring – EPDM		E70119	WE70119
	Retainer O-Ring – Viton®		V70119	WV70119
41	Washer, Belleville	2	101693	W101693
42	Rotor Nut	2	101806	W101806
43	Cover O-Ring – Buna	1	N70373	WN70373
	Cover O-Ring – EPDM		E70373	WE70373
	Cover O-Ring – Viton®		V70373	WV70373
44	Pump Cover	1	101848	W101848
44	Pump Cover – Jacketed	1	107668	W107668
45	Hex Nut	8	108371	W108371
45	Wing Nut	8	105852	W105852
46	Large Cleanout Plug	4	—	W41013
47	Drive Shaft Key, 3/8 X 3/8 X 1 5/8	1	000037003	W000-037-003
*When purchasing replacement parts for Waukesha® pumps manufactured before 07/12/04, order the following parts.
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Pump Part No.
26	Bearing Retainer Front	2	101812	W101812

Parts List – ZP2-180 – 224
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
1	SH Capscrew, SS, Body Retaining, Model 018–030	6	30-211	FSHCS25020-200-SS
1a	Washer, GBX Cover Capscrew, Model 060–324	6	43-189	FFW375C
2	Oil Seal – Gear Case Cover	1	STD030006	WSTD-030-006
3	Oil Plug 030-523, Gearbox	6	000046004	W000-046-004
4	Gear Case Cover, Steel (includes installed seal)	1	230106000	W230-106-000
5	Lock Nut – Gear	2	STD236011	WSTD-236-011
6	Lock Washer – Gear	2	STD136011	WSTD-136-011
7	Gear Drive Shaft	1	200007001	W200-007-001
8	Gear Short Shaft	1	200007002	W200-007-002
9	Key, Gear	2	200037000	W200-037-000
10	Gear Case, CI	1	230005000	W230-005-000
11	Oil Seal Rear	2	STD119002	WSTD-119-002
12	Grease Fitting 1/8	8	BD0092000	WBD0-092-000
13	Mounting Shim (Gear Case Base), CI	1	230110000	W230-110-000
14	SH Capscrew, G8Z, Mount/Base, Model 320-323	4	30-250	FSHCS50013-175-G8Z
15	Stud	8	108844	W108844
	Stud, Short, U1-224		35550	W35550
	Stud Jacketed, 220 U1		108847	W108847
	Stud	6	108844	W108844
	Stud, Short, U1-224	2	35550	W35550
16	Dowel Bushing, Lower	1	CD0116100	WCD0-116-100
17	Dowel Bushing, Upper	1	CD0116000	WCD0-116-000
18	Spacer Gear to Rear Bearing	2	40878	W40878
19	Rear Bearing	2	200035000	W200-035-000
20	Spacer Bearing	2	40752	W40752
21	180 – 224 Shim Kit	2	117892	W117892
22	Front Bearing	2	200036000	W200-036-000
23	Drive Shaft (17-4PH) Model 220, 224 U2	1	108415	W108415
23	Drive Shaft (17-4PH) Model 180, 184 U2	1	110023	W110023
24	Idle Shaft (17-4PH) Model 220, 224 U2	1	108416	W108416
24	Idle Shaft (17-4PH) Model 180, 184 U2	1	110024	W110024
25	Rotor Key	2	101827	W101827
25	Rotor Key	2	101828	W101828
26*	Bearing Retainer Front	2	121829	W121829
27	Grease Seal Front Brg Ret	2	121681	W121681
28	BH Capscrew, SS, Brg Ret, Model 060–324	8	30-60	FBHCS37516-125-SS
29	Stop Pin, Seal	6	101720	W101720
30	Dowel Pin, Upper Gear Case Side	1	CD0040R00	WCD0-040-R00
31	Dowel Pin, Lower Gear Case Side	1	CD0040R10	WCD0-040-R10
32	Pump Body – 180 U2	1	—	W180U2-001-010
	Pump Body – 220 U2		—	W220U2-001-010
	Pump Body – 224 U2		—	W224U2-001-010
33	Rectangular Flange O-Ring – Buna	1	N70376	WN70376
34	Dowel Pin, Lower Cover Side	1	GD0040100	WGD0-040-100
35	Dowel Pin, Upper Cover Side	1	GD0040000	WGD0-040-000
36	Rotor Hub O-Ring – Buna	2	N70230	WN70230
	Rotor Hub O-Ring – EPDM		E70230	WE70230
	Rotor Hub O-Ring – Viton®		V70230	WV70230
37	SH Capscrew, SS, Body Retaining, Model 180/320/323	2	30-323	FSHCS37516-400-SS
37	SH Capscrew, SS, Body Retaining, Model 220/380	2	30-499	FSHCS37516-450-SS
38	Rotor Twin Blade – #W88 Alloy – Model 180 U2	2	107273	W180U2-010-000
	Rotor Twin Blade – #W88 Alloy – Model 180 U2 + .040		——-	W180U2-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 180 U2 + .080		——-	W180U2-010-000-080
	Rotor Twin Blade – #W88 Alloy – Model 220 U2		102187	W220U2-010-000
	Rotor Twin Blade – #W88 Alloy – Model 220 U2 + .040		——-	W220U2-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 220 U2 + .080		——-	W220U2-010-000-080
	Single Blade Rotor – #W88 Alloy – 45° – 220 U2		117141	W117141
39	Rotor Nut O-Ring – Buna	2	N70235	WN70235
	Rotor Nut O-Ring – EPDM		E70235	WE70235
	Rotor Nut O-Ring – Viton®		V70235	WV70235
40	Retainer O-Ring – Buna	2	N70122	WN70122
	Retainer O-Ring – EPDM		E70122	WE70122
	Retainer O-Ring – Viton®		V70122	WV70122
41	Washer, Belleville	2	101694	W101694
42	Rotor Nut	2	101807	W101807
43	Cover O-Ring – Buna	1	N70381	WN70381
	Cover O-Ring – EPDM		E70381	WE70381
	Cover O-Ring – Viton®		V70381	WV70381
44	Pump Cover	1	101851	W101851
45	Hex Nut	8	108372	W108372
45	Wing Nut	8	105853	W105853
46	Large Cleanout Plug	4	—	W41013
47	Drive Shaft Key, 1/2 X 1/2 X 1 7/8	1	000037004	W000-037-004
*When purchasing replacement parts for Waukesha® pumps manufactured before 07/12/04, order the following parts.
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
26	Bearing Retainer Front	2	101813	W101813

Parts List – ZP2-210 – 324
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
1	SH Capscrew, SS, Body Retaining, Model 018–030	6	30-211	FSHCS25020-200-SS
1a	Washer, GBX Cover Capscrew, Model 060–324	6	43-189	FFW375C
2*	Oil Seal – Gear Case Cover	1	STD030006	WSTD-030-006
3	Oil Plug 030-523, Gearbox	6	000046004	W000-046-004
4	Gear Case Cover, Steel (includes installed seal)	1	40669	W40669
5	Lock Nut – Gear	2	105697	W105697
6	Lock Washer – Gear	2	STD136005	WSTD-136-005
7	Gear Drive Shaft	1	102470	W102470
8	Gear Drive Shaft	1	102470	W102470
9	Key, Gear	2	0H1037000	W0H1-037-000
10	Gearcase, CI, 210-320 U2	1	105478	W105478
11	Oil Seal Rear	2	102475	W102475
12	Grease Fitting 1/8	8	BD0092000	WBD0-092-000
13	Mounting Shim (Gear Case Base), CI	1	40288	W40288
14	SH Capscrew, G8Z, Mount/Base, Model 320-323	4	30-250	FSHCS50013-175-G8Z
15a	Stud, Cover, Long	4	111291	W111291
15b	Stud, Cover, Short	4	111292	W111292
15b	Stud, Cover, Long	4	112191	W112191
16&17	Dowel Bushing, Gearcase	2	0H1116000	W0H1-116-000
18	Spacer Gear to Rear Bearing	2	102474	W102474
19	Rear Bearing	2	0H1036000	W0H1-036-000
20	320 front Bearing Spacer	2	102472	W102472
21	210 – 324 Shim Kit	2	117893	W117893
22	Front Bearing	2	0H1036003	W0H1-036-003
23	Drive Shaft (17-4PH) Model 210, 214 U2	1	112186	W112186
23	Drive Shaft (17-4PH) Model 320, 324 U2	1	108417	W108417
24	Idle Shaft (17-4PH) Model 210, 214 U2	1	112187	W112187
24	Idle Shaft (17-4PH) Model 320, 324 U2	1	108418	W108418
25	Rotor Key	2	105422	W105422
25	Rotor Key	2	105421	W105421
26	Bearing Retainer Front	2	123533	W123533
27	Grease Seal Front Brg Ret	2	121681	W121681
28	BH Capscrew, SS, Brg Ret, Model 060–324	8	30-60	FBHCS37516-125-SS
29	Stop Pin, Seal	6	102438	W102438
30	Dowel Pin, Gear Case Side	2	—	W320-004-R00
31	Dowel Pin, Gear Case Side	2	—	W320-004-R00
32	Pump Body – 210 U2	1	—	W210U2-001-010
32	Pump Body – 320 U2	1	—	W320U2-001-010
34	Dowel Pin, Cover Side	2	—	W320-004-000
35	Dowel Pin, Cover Side	2	—	W320-004-000
36	Rotor Hub O-Ring – Buna	2	N70232	WN70232
	Rotor Hub O-Ring – EPDM		E70232	WE70232
	Rotor Hub O-Ring – Viton®		V70232	WV70232
37	SH Capscrew, SS, Body Retaining, Model 180/320/323	2	30-323	FSHCS37516-400-SS
37	SH Capscrew, SS, Body Retaining, Model 220/380	2	30-499	FSHCS37516-450-SS
38	Rotor Twin Blade – #W88 Alloy – Model 210 U2	2	112199	W210U2-010-000
	Rotor Twin Blade – #W88 Alloy – Model 210 U2 + .040		——-	W210U2-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 210 U2 + .080		——-	W210U2-010-000-080
	Rotor Twin Blade – #W88 Alloy – Model 210 U2		112199	W210U2-010-000
	Rotor Twin Blade – #W88 Alloy – Model 210 U2 + .040		——-	W210U2-010-000-040
	Rotor Twin Blade – #W88 Alloy – Model 210 U2 + .080		——-	W210U2-010-000-080
39	Rotor Nut O-Ring – Buna	2	N70237	WN70237
	Rotor Nut O-Ring – EPDM		E70237	WE70237
	Rotor Nut O-Ring – Viton®		V70237	WV70237
40	Retainer O-Ring – Buna	2	N70125	WN70125
	Retainer O-Ring – EPDM		E70125	WE70125
	Retainer O-Ring – Viton®		V70125	WV70125
41	Washer, Belleville	2	105411	W105411
42	Rotor Nut	2	105409	W105409
43	Cover O-Ring – Buna (Model 210 U2)	1	N70382	WN70382
	Cover O-Ring – EPDM (Model 210 U2)		E70382	WE70382
	Cover O-Ring – Viton® (Model 210 U2)		V70382	WV70382
	Cover O-Ring – Buna (Model 320 U2)		N70383	WN70383
	Cover O-Ring – EPDM (Model 320 U2)		E70383	WE70383
	Cover O-Ring – Viton® (Model 320 U2)		V70383	WV70383
44	Pump Cover	1	112864	W112864
44	Pump Cover	1	105406	W105406
45	Hex Nut (optional)	8	108373	W108373
46	Large Cleanout Plug		—	W41013
47	Drive Shaft Key, 5/8 X 5/8 X 2 3/4		000037005	W000-037-005
*When purchasing replacement parts for Waukesha^®pumps, order the following parts.
Item	Description	Quantity Per Pump	Ref. Part No.	ZMT Part No.
2	Oil Seal – Gear Case Cover	2	STD030004	WSTD-030-004

PUMP CUSTOMIZATION

ZM Technologies offers several upgrades to the O.E.M. parts that make our pumps “Better than O.E.M.”. Many performance upgrades are available for Waukesha® U1 & U2 Pumps:

Oil Bath Conversion – Convert pump bearing housing to oil lube, instead of grease lube. This improves bearing life, which provides better pump wear and improved reliability.
ZMT Seal Conversion – Convert pump seals to the flushless, a rugged ZMT engineered seal.
Wearability Upgrade – Convert pump to a hardened body with Z-Alloy rotors for up to 4 times better life .

DOWNLOADS

Literature

ZP Series Literature Sanitary Pump Line Literature U1 & U2 Remanufacturing Literature

Information

ZP1 & ZP1+ Maintenance Manual ZP1 & ZP1+ Parts List

Discover High Quality, Cost-Effective, Innovative Solutions at ZM Technologies!

REQUEST MORE INFORMATION

WAUKESHA® U1 & U2 PUMP PARTS

WAUKESHA® U1 & U2 PUMP PARTS

Parts List – ZP1-006, 015, 018, 024

Parts List – ZP1-030, 034

Parts List – ZP1-060 – 134

Parts List – ZP1-220 – 224

Parts List – ZP1-320 – 324

Parts List – ZP2-006 – 018

Parts List – ZP2-030 – 034

Parts List – ZP2-045 – 134

Parts List – ZP2-180 – 224

Parts List – ZP2-210 – 324

PUMP CUSTOMIZATION

DOWNLOADS

Literature

Information

Discover High Quality, Cost-Effective, Innovative Solutions at ZM Technologies!

Contact Info

Information

My account

About Us

Resource Links

ZMT Product Lines

Parts & Services

Contact Info

RESOURCE LINKS
