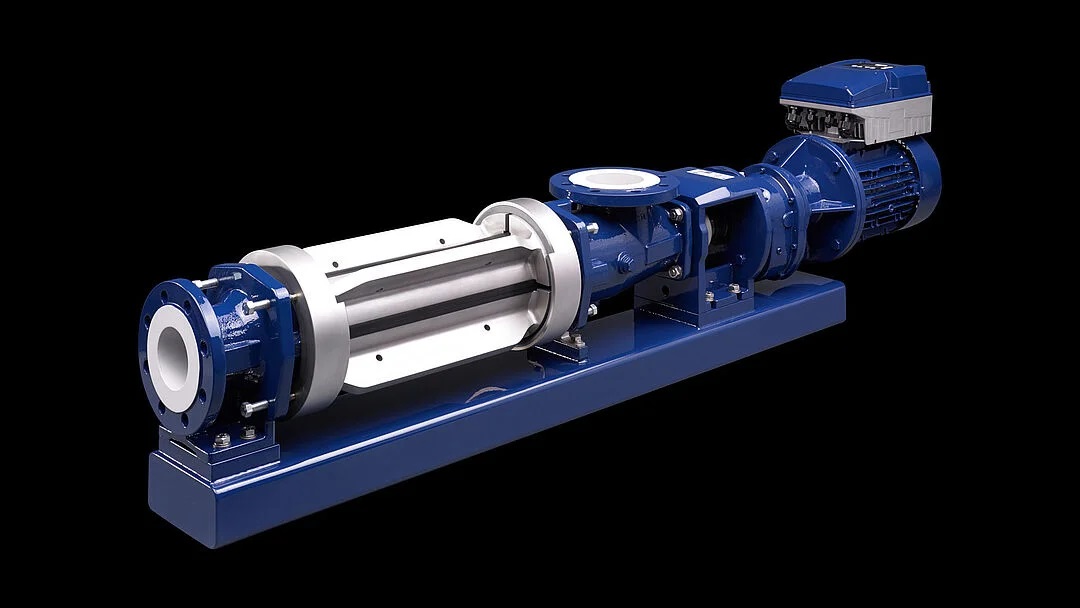

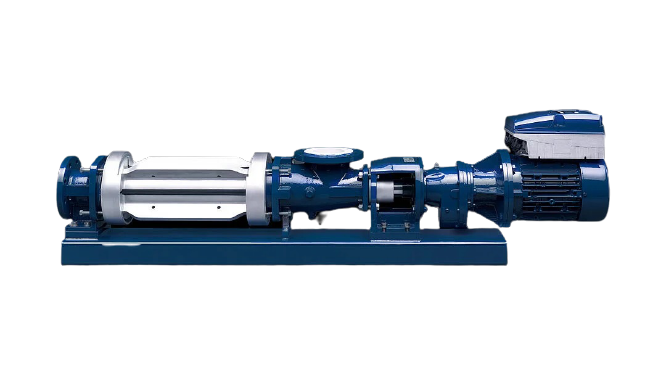

SCT SERIES PROGRESSIVE CAVITY PUMP
THIS PROGRESSIVE CAVITY INDUSTRIAL PUMP OFFERS:
- Easy, fast maintenance with easy handling during dismantling and reassembly.
- Integrated tensioning device extends the rotor and stator’s life by up to 200%.
- Reduces overall maintenance time by up to 85%..
- Higher productivity due to less maintenance downtime.
- High efficiency due to lower energy requirements.
- Environmentally friendly as components can easily be recycled.
SCT SERIES PERFORMANCE OVERVIEW
Models: 3 Available
Max Outlet Pressure: 120 PSI / 8 BAR
Max Flow Rate: 342 GPM / 78 Mᵌ/hr
Max Viscosity: 1,000 cP
Seal Specifications: Various Seal Options
PUMP SIZE RANGES
SCT PUMP PROPERTIES
Smart Conveying Technology (SCT) means quick maintenance, significantly reduced life cycle costs and the shortest maintenance downtime. The design of SCT enables the rotor/stator sealing line to be adjusted to suit the application and compensate for wear, leading to more than double the lifetime of the rotor and stator. SCT also shortens the maintenance time on the rotor and stator by up to 85%. SEEPEX pumps with SCT are successfully used in virtually all industries, applications and media. The patented SEEPEX 1-stage design innovation has won numerous awards. In addition to the well-established 1-stage design for pressures up to 4 bar, SCT is also available in a 2-stage design for pressures up to 8 bar.
BENEFITS
- Quick maintenance, easy handling during assembly/disassembly.
- Integrated tensioning device extends the rotor and stator’s life by up to 200%.
- Reduces maintenance time by up to 85%.
- High productivity due to short maintenance downtimes and substantially lower life-cycle costs.
- Smart Seal Housing enables the fast maintenance of mechanical seals and therefore saves even more time during maintenance work (optionally available).

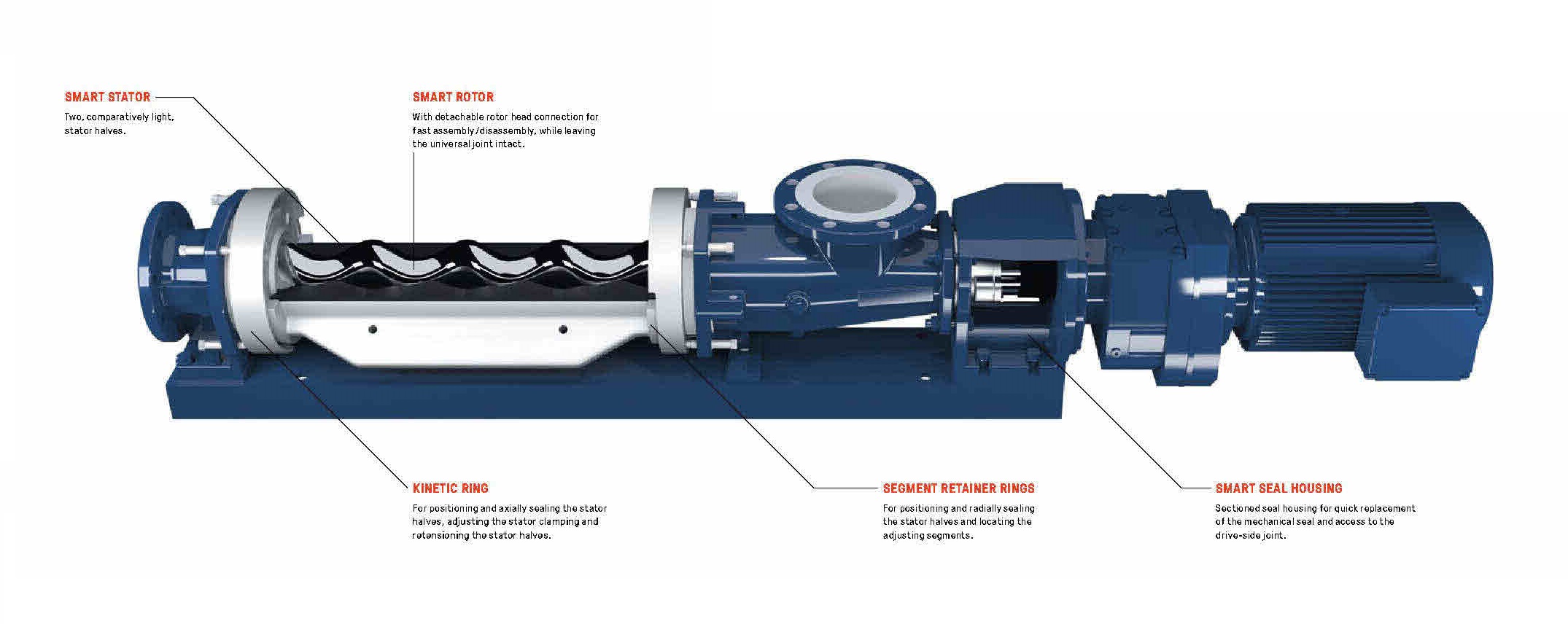

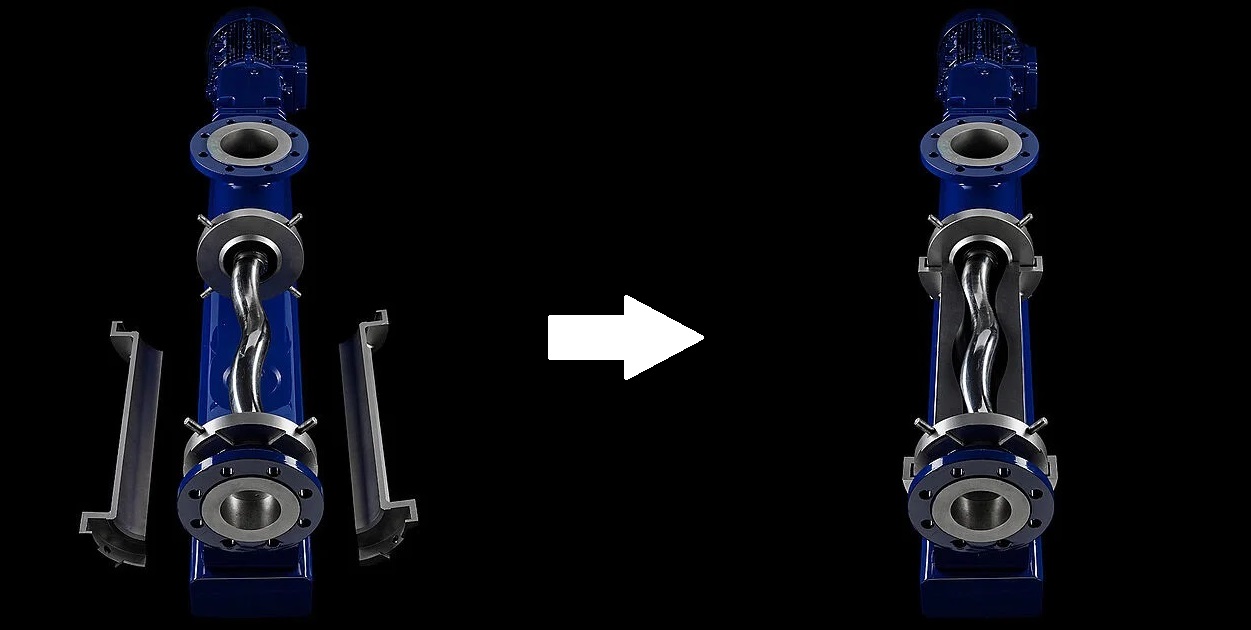

- Ease of maintenance: due to the two-piece Smart Stator and quick release Smart Rotor, which leaves the joint in place and eliminates the need to remove pipe work.
- Small footprint for all service activities: no space required for stator dismantling.
- Environmentally friendly: separate disposal of elastomer and steel components.
